| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

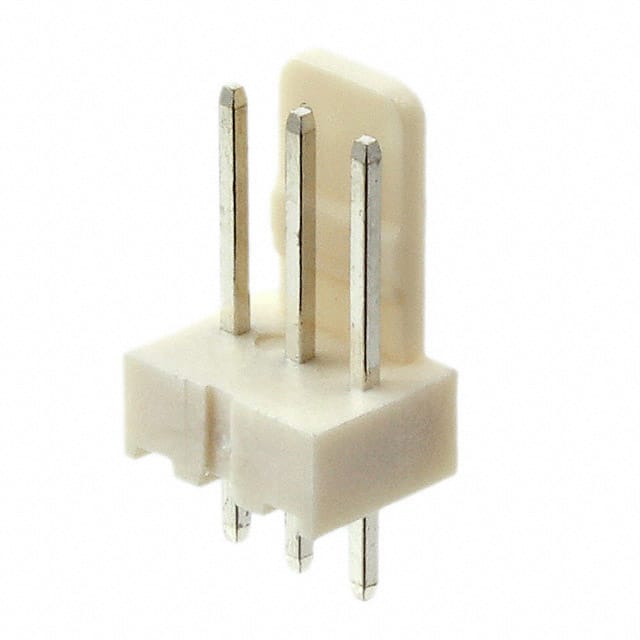

The Würth Elektronik 61900311121 is a 3-position, single-row vertical male pin header with a 2.54mm (0.100") pitch, designed for board-to-cable/wire connections. It features a shrouded one-wall design with a friction lock for secure mating. The insulator is molded from beige polyamide (Nylon 6/6) with a UL94 V-0 flammability rating. Contacts are made of copper alloy with tin plating, rated for up to 25 mating cycles.
Electrical specifications include a 3A current rating and 250V AC working voltage. Contact resistance is 20 mOhm maximum, and dielectric withstanding voltage is 1000V AC minimum. The component operates over a temperature range of -40°C to 105°C.
The header is terminated via through-hole solder and is packaged in a bag. It is RoHS compliant and lead-free, as confirmed by the manufacturer datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.65 | $0.65 |
| 50+ | $0.59 | $0.59 |
| 100+ | $0.48 | $0.48 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions in a single row.
The pitch is 2.54mm (0.100 inch).
The current rating is 3A.
The voltage rating is 250V AC.
It uses through-hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
It has a friction lock for secure mating.
