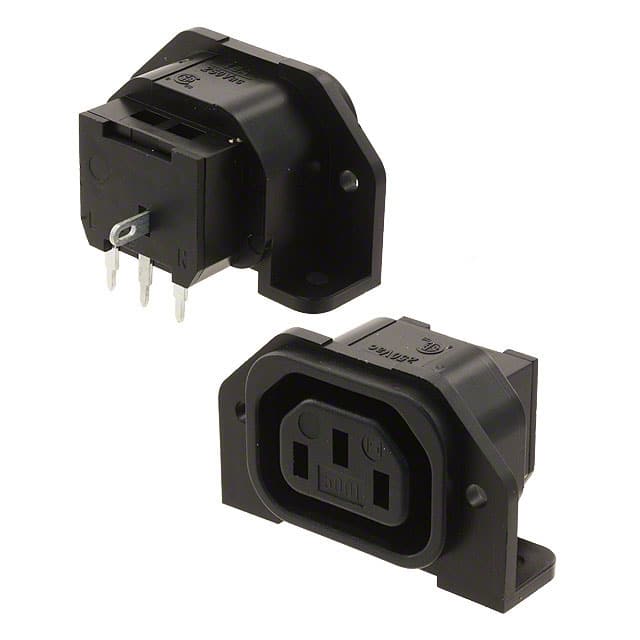

6182.0033 IEC 320-2-2/F panel mount receptacle with 3 female socket positions. Rated 10A at 250VAC (IEC) or 15A at 250VAC (UL/CSA).
Mfr Part #:

6182.0033

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
IEC 320-2-2/F panel mount receptacle with 3 female socket positions. Rated 10A at 250VAC (IEC) or 15A at 250VAC (UL/CSA).
✓ Total Stock: 33 pcs
$ Price Range: $4.50 - $7.33

6182.0033 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6182.0033 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Housing Material
Ingress Protection
Lead Style
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Operating Temperature
Panel Cutout Dimensions
Panel Thickness
Storage Temperature
Termination
Termination Style
Voltage Rating
View Similar Products (0)

6182.0033 Description

Short technical summary and product information.

The Schurter 6182.0033 is an IEC 320-2-2/F appliance outlet receptacle designed for power entry in commercial equipment. It features a 3-position female socket configuration with a panel mount flange and through-hole right-angle solder terminals for secure installation.



Electrical ratings: 10 A at 250 VAC per IEC, 15 A at 250 VAC per UL/CSA. Dielectric strength exceeds 4 kVAC between L-N and 2 kVAC between L/N-PE. The component supports protection class I or II and is unfiltered with no fuse accommodation.



Mechanical specifications include a panel cutout of 34.40 mm x 25.90 mm and a maximum panel thickness of 3.20 mm. The housing is made of PA6 black plastic with UL94 V-0 flammability rating. Ingress protection is IP20 on the front side. Operating temperature range is -25 °C to 70 °C with a pin temperature rating of 70 °C.

6182.0033 Quick Information

Product Type: Power Entry Module
Series: 5001
Canonical Name: Schurter 6182.0033 IEC 320-2-2/F Appliance Outlet Receptacle, 3 Positions, Panel Mount
Subcategory: IEC 320-2-2/F

6182.0033 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6182.0033 Estimated Pricing

Qty Low High
1+ $7.33 $7.33
10+ $6.23 $6.23
25+ $5.84 $5.84
50+ $5.56 $5.56
100+ $5.29 $5.29
250+ $4.96 $4.96
500+ $4.73 $4.73
1,000+ $4.50 $4.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

6182.0033 Features

  • Panel mount with flange and right angle solder terminals.
  • Rated 10A at 250VAC (IEC) and 15A at 250VAC (UL/CSA).
  • IP20 front side protection.
  • Housing PA6 with UL94 V-0 flammability rating.
  • Operating temperature range -25°C to 70°C.

6182.0033 Applications

  • Used as power entry outlet in commercial equipment.
  • Suitable for protection class I or II appliances.
  • Common in industrial control and power distribution panels.
  • Ideal for IEC 60320-compliant power supply designs.

6182.0033 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 6182.0033 connector have?

3 positions (female sockets).

What is the current rating of this Schurter outlet?

10 A (IEC) or 15 A (UL/CSA) at 250 VAC.

What is the voltage rating?

250 VAC.

What mounting type does this part support?

Panel mount with flange and through-hole right-angle solder terminals.

Is this connector filtered or does it accommodate a fuse?

Unfiltered and has no fuse accommodation.

What is the operating temperature range?

-25 °C to 70 °C.

What approvals does the 6182.0033 hold?

CCC, cCSAus, and ENEC approvals.
