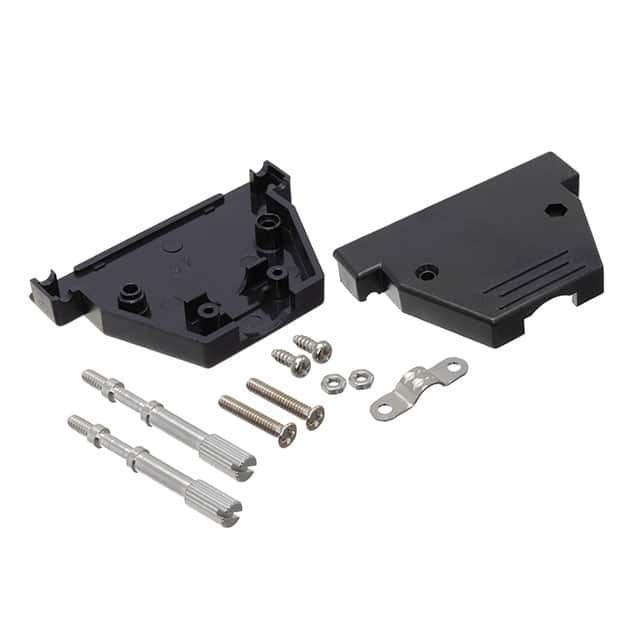

61803725322 Würth Elektronik 61803725322 is a two-piece D-Sub backshell hood for 37-position connectors. It features a 180° top cable exit, thermoplastic material, black color, and 4-40 mating screws.
Mfr Part #:

61803725322

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 61803725322 is a two-piece D-Sub backshell hood for 37-position connectors. It features a 180° top cable exit, thermoplastic material, black color, and 4-40 mating screws.
✓ Total Stock: 3,000 pcs
$ Price Range: $4.31 - $7.67

61803725322 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 5 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61803725322 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Accessory Type
Automotive Grade
Cable Exit
Cable Type
Color
Features
Hardware
Industrial Grade
Insulator Material
Material
Medical Grade
Military Grade
Number of Positions
SVHC Present
Shielding
Tape & Reel
View Similar Products (0)

61803725322 Description

Short technical summary and product information.

This is a D-Sub backshell hood from the WR-DSUB series by Würth Elektronik, designed for 37-position D-Sub connectors. It is a two-piece backshell accessory that provides cable strain relief and shielding continuity in a top-entry (180°) configuration.



The backshell is made of thermoplastic insulator material with a black finish. It includes assembly hardware and a cable clamp, and features 4-40 UNC mating screws. The mechanical dimensions for the 37-position variant are: overall length 63.5 mm, width 18.2 mm, height 70.5 mm, with specific mounting dimensions as per datasheet.



The product is RoHS compliant and lead-free, with a UL94 HB flammability rating. It is packaged in a bag. This backshell is suitable for applications requiring a robust and cost-effective cable management solution for D-Sub connectors, commonly used in data communication, industrial control, and instrumentation equipment.



Note: The datasheet specifies that this part should not be used with the 618 0xx 214 622 series.

61803725322 Quick Information

Product Type: D-Sub Backshell
Series: WR-DSUB
Canonical Name: WR-DSUB Metalized Plastic Hood, Top Entry, 37 Positions, 4-40 Screw
Subcategory: Two Piece Backshell

61803725322 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

61803725322 Estimated Pricing

Qty Low High
1+ $7.67 $7.67
10+ $7.28 $7.28
50+ $6.46 $6.46
100+ $5.64 $5.64
250+ $4.84 $4.84
500+ $4.31 $4.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

61803725322 Features

  • Two-piece design for 37-position D-Sub connectors.
  • 180° top cable exit for straight cable routing.
  • Thermoplastic insulator with UL94 HB rating.
  • Includes 4-40 UNC mating screws and cable clamp.
  • RoHS compliant and lead-free.

61803725322 Applications

  • Used in data communication equipment cabling.
  • Suitable for industrial control systems.
  • Ideal for instrumentation and measurement devices.

61803725322 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this backshell accommodate?

37 positions.

What material is the backshell insulator made of?

Thermoplastic.

What is the cable exit angle?

180° (top entry).

What type of hardware is included?

Assembly hardware and cable clamp, with 4-40 UNC mating screws.

What is the flammability rating?

UL94 HB.

Is this part RoHS compliant?

Yes, RoHS3 compliant and lead-free.

How is this part packaged?

In a bag.
