| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Form | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Durability | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Shielding Material | |
| Shielding Plating | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL | |
| Withstanding Voltage | |
| Working Voltage |

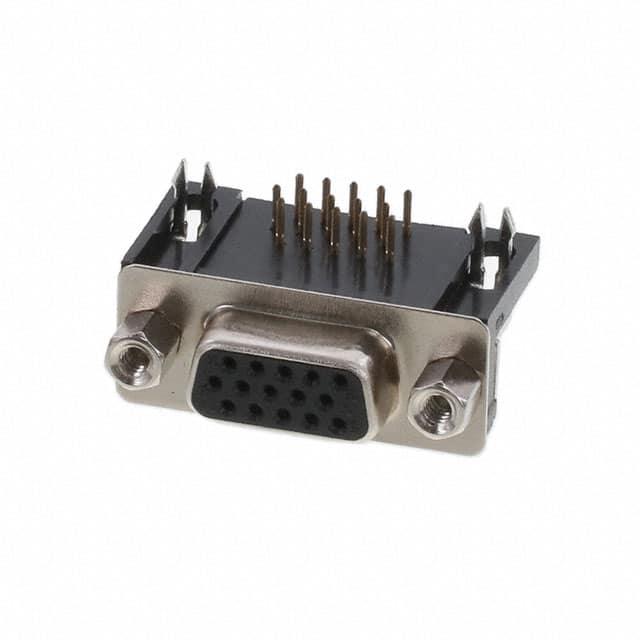

The Würth Elektronik 618015330923 is a WR-DSUB series female high density D-Sub connector. It features 15 positions arranged in 3 rows with stamped copper alloy contacts plated in gold for reliable signal transmission. The connector is terminated via through hole right angle solder tails.
The insulator is molded in black PBT with a UL94 V-0 flammability rating. The steel shell is nickel plated and the shielding is tin plated steel. The flange includes female screwlocks (4-40) on the mating side and the connector incorporates a board lock feature for secure attachment to the PCB. The backset spacing is 0.350" (8.89 mm).
Electrical ratings include a current rating of 3 A per contact, working voltage of 60 V AC, withstanding voltage of 1000 V AC minimum, contact resistance of 30 mΩ maximum, and insulation resistance of 5000 MΩ minimum. The operating temperature range is -55 to +105 °C with a durability of 50 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.57 | $3.57 |
| 10+ | $3.38 | $3.38 |
| 50+ | $3.01 | $3.01 |
| 100+ | $2.62 | $2.62 |
| 300+ | $2.25 | $2.25 |
| 500+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a D-Sub, High Density receptacle with female sockets.
The connector has 15 positions arranged in 3 rows.
It is a through hole, right angle mount with solder termination.
The current rating is 3 A per contact.
The operating temperature range is -55 to +105 °C.
