Mfr Part #:

61800924923

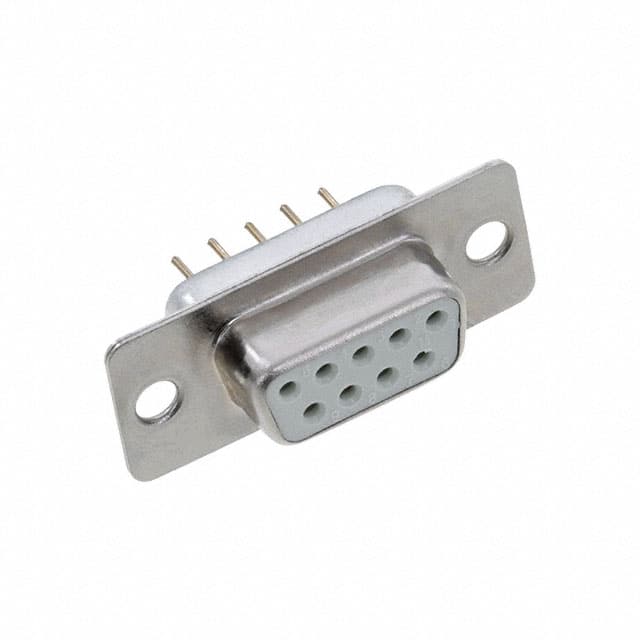

D-Sub receptacle connector with 9 positions, female sockets, and solder cup termination from Würth Elektronik. Rated for 3A current and 125V AC operating voltage.

✓ Total Stock: 7 pcs

$ Price Range: $1.00 - $1.78

61800924923 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

61800924923 Description

Short technical summary and product information.

The Würth Elektronik 61800924923 is a 9-position D-Sub receptacle connector designed for free hanging (in-line) mounting. It features female sockets with gold-plated copper alloy contacts and solder cup termination, making it suitable for wire-to-wire or cable assembly applications.

The connector is rated for 3A current and 125V AC working voltage, with a dielectric withstanding voltage of 1000V AC/min. Contact resistance is 30 mΩ max, and insulator resistance exceeds 5000 MΩ. The insulator is made of PBT with UL94 V-0 flammability rating, ensuring reliable performance in a wide temperature range of -40°C to 105°C.

Packaged in tray, this connector is ideal for field wiring or maintenance where soldered connections are preferred. The steel shell with nickel plating provides durability and EMI shielding. It is RoHS3 compliant and lead free, meeting environmental standards.

61800924923 Quick Information

Product Type: D-Sub Connector Assembly

Series: WR-DSUB

Canonical Name: D-Sub Receptacle Connector, 9 Positions, Female Sockets, Solder Cup, Free Hanging

Subcategory: D-Sub Connector Assemblies

61800924923 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

61800924923 Estimated Pricing

Qty	Low	High
1+	$1.78	$1.78
10+	$1.69	$1.69
50+	$1.50	$1.50
100+	$1.31	$1.31
250+	$1.12	$1.12
500+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

61800924923 Features

9-position D-Sub receptacle connector.
Gold-plated copper alloy contacts.
Solder cup termination for easy wiring.
Rated for 3A current and 125V AC.
Operating temperature range -40°C to 105°C.

61800924923 Applications

Used in industrial control systems.
Suitable for data communication interfaces.
Ideal for free hanging cable assemblies.
Common in computer peripheral connections.

61800924923 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this D-Sub connector have?

9 positions in 2 rows.

What is the current rating of this connector?

3 A.

What is the voltage rating of this connector?

125 V AC.

What is the mounting type of this connector?

Free hanging (in-line).

What type of termination does this connector use?

Solder cup.

What is the contact material and finish?

Copper alloy contacts with selective gold plating.

Is this connector RoHS compliant?

Yes, RoHS3 compliant and lead free.

Category	D-Sub Connector Assemblies
Manufacturer Name	Würth Elektronik
Automotive Grade	No
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Resistance	30 mΩ max
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Withstanding Voltage	1000 V AC/min
Flange Feature	Housing/Shell (Unthreaded)
Halogen Free	No
Industrial Grade	Yes
Insulator Material	PBT
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature	-40 °C to 105 °C
SVHC Present	Not Present
Shell Material, Finish	Steel, Nickel Plated
Shell Size, Connector Layout	1 (DE, E)
Tape & Reel	Yes
Termination	Solder Cup
Working Voltage	125 V AC
