| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Includes | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Working Voltage |

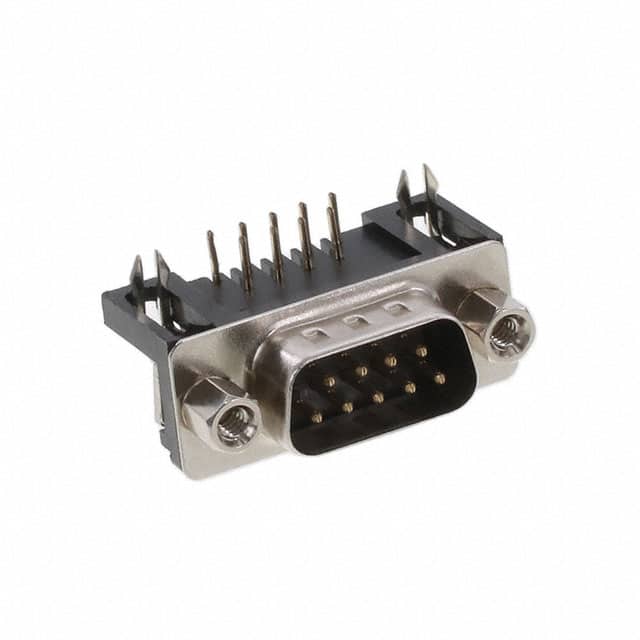

This is a 9-position D-Sub plug connector from Würth Elektronik, designed for right angle through hole mounting with solder termination. It features a steel shell with nickel plating and gold-plated copper alloy contacts.
Electrical ratings include a current rating of 3A, working voltage of 125V AC, and contact resistance of 30 mOhm max. Insulation resistance is greater than 5000 MOhm, and dielectric withstanding voltage is 100V AC. Operating temperature range is -55°C to 105°C.
The connector includes board locks and grounding indents for secure PCB attachment. It comes with UNC 4-40 screw and board lock. The insulator is made of PBT with UL94 V-0 flammability rating. Shielding is provided by the nickel-plated steel shell.
Packaging is in tray. The connector is RoHS and lead-free compliant. It is suitable for general electronics applications requiring a reliable D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.86 | $2.86 |
| 10+ | $2.71 | $2.71 |
| 50+ | $2.41 | $2.41 |
| 100+ | $2.10 | $2.10 |
| 300+ | $1.80 | $1.80 |
| 500+ | $1.60 | $1.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
3A.
125V AC.
Through hole, right angle.
-55°C to 105°C.
Gold.
Yes, RoHS3 compliant.
