| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Contact Type (Stamped) | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Insulator Material | |
| Insulator Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Quality Class | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Working Voltage |

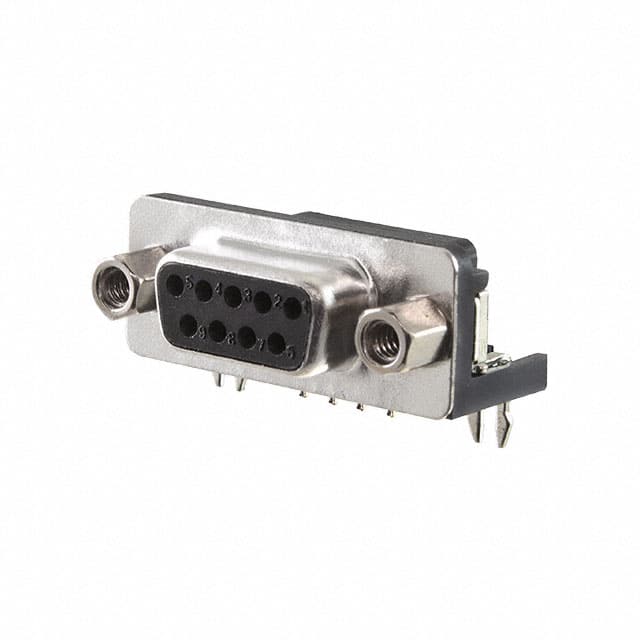

The Würth Elektronik 618009231121 is a D-Sub receptacle connector featuring 9 positions arranged in 2 rows. It is designed for right-angle through-hole mounting with solder termination, making it suitable for PCB applications where space is constrained. The connector has a steel, nickel-plated shell and gold-plated contacts for reliable signal integrity. It is rated for 3A current and 125V AC working voltage, with an operating temperature range of -55°C to 105°C. The insulator is made of PBT with UL94 V-0 flammability rating. Electrical characteristics include a contact resistance of 30 mOhm max, insulator resistance >5000 MOhm, and dielectric withstanding voltage of 1000V AC. The backset spacing is 0.318" (8.08mm). This connector includes board locks for secure attachment to the PCB. It is classified as quality class 3 per IEC 603-13. The connector is RoHS compliant and packaged in a tray.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.86 | $2.86 |
| 10+ | $2.71 | $2.71 |
| 50+ | $2.41 | $2.41 |
| 100+ | $2.10 | $2.10 |
| 300+ | $1.80 | $1.80 |
| 500+ | $1.60 | $1.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
3A.
125V AC.
Through hole, right angle.
Gold.
-55°C to 105°C.
Yes, it is RoHS compliant.
