| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
382 pcs
|
382 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Plating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Hold Down Style | |
| Housing Color | |
| Housing Material | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| PCB Thickness Recommended | |
| Packaging Method | |
| Panel Thickness (max) | |
| Shell Options | |
| Shell Plating | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Tail Plating | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL Flammability | |
| USB 2.0 Qualified |

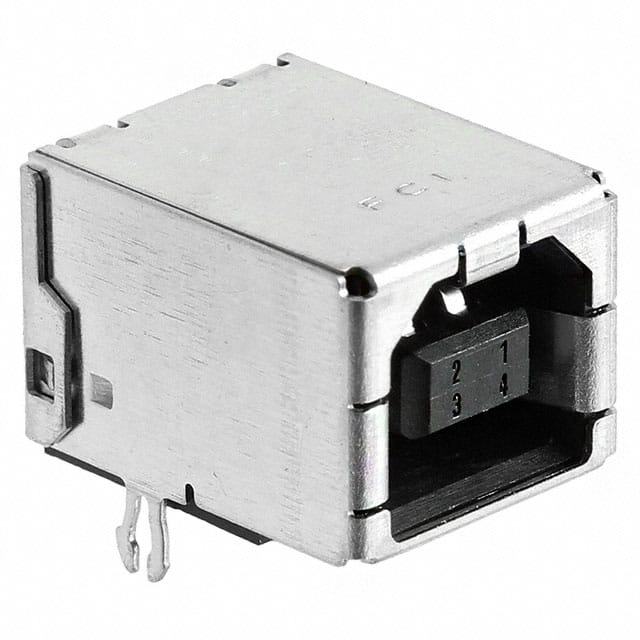

The 61729-1011BLF is a USB 2.0 Type B receptacle connector manufactured by Amphenol ICC. It is a single-port, 4-contact receptacle with a right-angle through-hole mounting style. The connector features a shielded design with a full back shield and bright tin plating on the shell. The housing is made of glass-filled thermoplastic with UL 94V-0 flammability rating and is black in color. The contact area is plated with 30u GXT, and the tails are plated with 100u pure tin. The recommended PCB thickness is 1.57 mm, and the maximum panel thickness is 2.67 mm. The connector is qualified for USB 2.0 and has a mating cycle rating of 1500 cycles. It includes a board lock feature for secure attachment to the PCB. The operating temperature range is -55°C to 85°C. The part is packaged in tubes. This connector is suitable for applications requiring a reliable USB 2.0 connection in a right-angle orientation, such as panel-mount or board-mount interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.28 | $1.28 |
| 25+ | $1.00 | $1.00 |
| 100+ | $0.97 | $0.97 |
| 250+ | $0.88 | $0.88 |
| 500+ | $0.85 | $0.85 |
| 1,000+ | $0.80 | $0.80 |
| 5,000+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 A
Through Hole, Right Angle
4 contacts
USB 2.0
-55°C to 85°C
30u GXT
Yes, shielded with full back shield.
