| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77,000 pcs
|
77000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter Range | |
| Barrel Type | |
| CSA Certified | |
| China RoHS | |
| Connection Capacity | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Gender | |
| Halogen Free | |
| Insertion Force | |
| Insulation | |
| Length | |
| Mating Retention Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Receptacle Terminal Stock Thickness | |
| Sealable | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| UL Rating | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire Stop | |
| Wire size | |
| Wire/Cable Type |

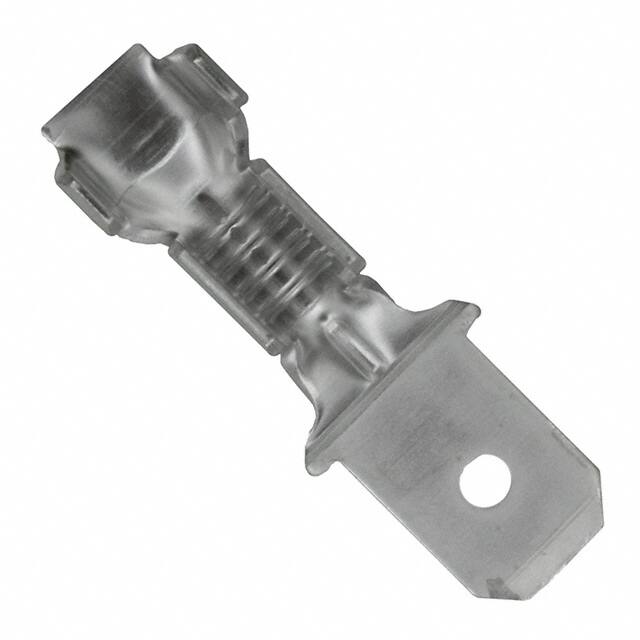

The TE Connectivity 61687-2 is a standard male quick disconnect tab terminal designed for reliable wire-to-wire or wire-to-board connections. It accepts 14-18 AWG wire (0.82 – 3.31 mm²) and features a 0.187" (4.75mm) mating tab width with a 0.032" (0.81mm) tab thickness and 0.250" (6.35mm) tab length. The overall length is 17.15mm (0.675").
The terminal is made of brass with a tin plating for good conductivity and corrosion resistance. It is non-insulated and uses a crimp termination method with an open barrel and Tab-Lok crimp type. The terminal includes wire insulation support and accepts wire insulation diameters from 2.79 to 5.33 mm. It has a dimple mating retention feature for secure connection.
This component is designed for free hanging (in-line) mounting and operates over a temperature range of -40 to 110 °C. It is rated for single connection capacity and is not sealable. The part is supplied in strip/reel packaging with 4000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 3,500+ | $0.13 | $0.13 |
| 7,000+ | $0.12 | $0.12 |
| 14,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 61687-2 accepts 14-18 AWG wire, corresponding to a wire size of 0.82 – 3.31 mm².
The tab width is 0.187" (4.75mm) and the tab thickness is 0.032" (0.81mm).
No, the 61687-2 is a non-insulated terminal.
The operating temperature range is -40 to 110 °C.
The 61687-2 is supplied in strip/reel packaging with 4000 pieces per reel.
The 61687-2 is compliant with EU RoHS, EU ELV, China RoHS, and is UL listed and CSA certified. It is also low halogen and does not contain REACH SVHC.
