| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Termination | |
| Termination Style | |
| Voltage Rating |

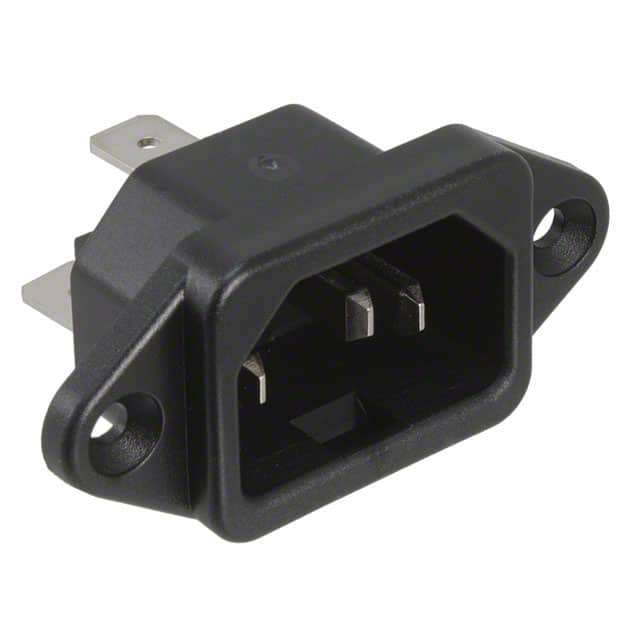

The Schurter 6162.0159 is an IEC 320-C14 power entry receptacle designed for panel mount installation with a flange. It accepts male blade connectors and provides 3 positions for line, neutral, and ground connections.
The unfiltered commercial-grade device is rated for 10A at 250VAC and terminates via 0.250 inch (6.3mm) quick connect tabs. The rectangular panel cutout measures 27.60mm x 19.90mm. A V-Lock notch feature helps secure the mating plug.
The housing is molded from material rated UL94 V-0 for flammability, and the unit carries an IP20 ingress protection rating. Approvals include cCSAus, ENEC, and UL.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.20 | $3.20 |
| 10+ | $2.55 | $2.55 |
| 50+ | $2.42 | $2.42 |
| 100+ | $2.31 | $2.31 |
| 250+ | $2.16 | $2.16 |
| 500+ | $2.06 | $2.06 |
| 1,000+ | $1.96 | $1.96 |
| 2,500+ | $1.92 | $1.92 |
| 5,000+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
The voltage rating is 250VAC.
Panel mount with flange.
IEC 320-C14.
No, it does not accommodate a fuse.
UL94 V-0.
