| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Durability | |
| Features | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Flammability Rating | |
| Insulator Material | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Ratings | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Withstanding Voltage | |
| Withstanding Voltage Shielding to Pin | |
| Working Voltage |

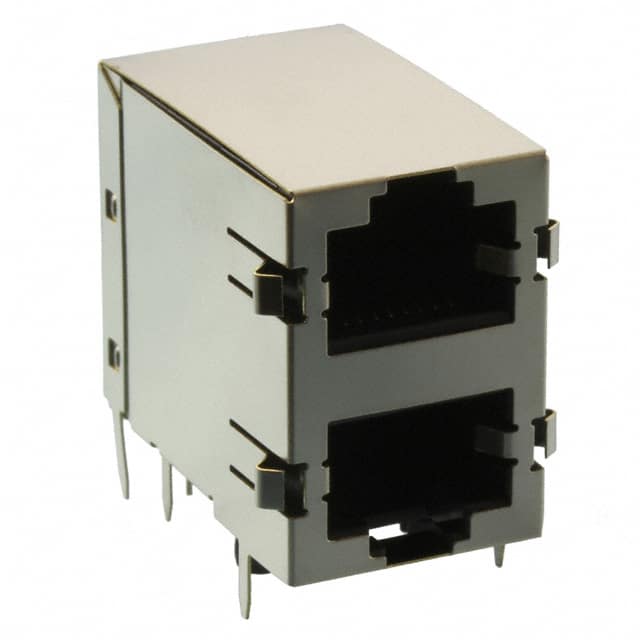

The Würth Elektronik 615016240521 is a WR-MJ series modular jack designed for Ethernet and networking applications. It features an 8P8C (RJ45) configuration with two stacked ports, each having two rows of contacts. The connector is through-hole mounted with a 90° right-angle orientation and tab direction up and down.
This jack is fully shielded with an EMI finger for enhanced electromagnetic interference protection. The contacts are made of copper alloy with selective gold plating, and the shielding is bronze with nickel plating. The insulator is black PBT with a UL94 V-0 flammability rating. It includes a board lock feature for secure PCB attachment.
Electrical specifications include a working voltage of 120 V AC, withstanding voltage of 1000 V AC (pin-to-pin) and 1500 V AC (shielding to pin), contact resistance of 20 mΩ maximum, and insulation resistance of 500 MΩ minimum. The connector is rated for Cat5 performance and has a durability of 500 mating cycles minimum. Operating temperature range is -40 to +85 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.52 | $9.52 |
| 10+ | $9.36 | $9.36 |
| 60+ | $8.69 | $8.69 |
| 120+ | $8.02 | $8.02 |
| 540+ | $7.35 | $7.35 |
| 1,020+ | $6.68 | $6.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is an 8P8C (RJ45, Ethernet) modular jack with 2 ports and 2 rows.
Through hole mounting with 90° right angle orientation and tab direction up and down.
Yes, it is shielded with an EMI finger.
-40 to +85 °C.
Working voltage is 120 V AC, withstanding voltage is 1000 V AC (pin-to-pin) and 1500 V AC (shielding to pin).
Contact resistance is 20 mΩ maximum, insulation resistance is 500 MΩ minimum.
Minimum 500 mating cycles.
