| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
548 pcs
|
548 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Durability | |
| Features | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Flammability Rating | |
| Insulator Material | |
| LED Color | |
| Military Grade | |
| Mounting Type | |
| Number of Pins (xPxC) | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Rated Current | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Withstanding Voltage | |
| Withstanding Voltage Shielding to Pin | |
| Working Voltage |

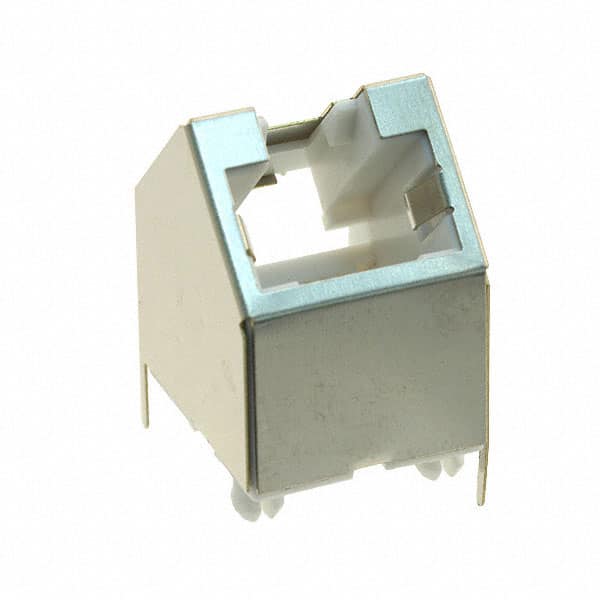

The Würth Elektronik 615008145221 is a WR-MJ series modular jack designed for Ethernet and other 8P8C (RJ45) applications. This single-port, 1-row jack features a 45° angled orientation with an upward tab direction, making it suitable for compact PCB layouts where space is constrained.
Key electrical specifications include a rated current of 1.5 A and a working voltage of 120 VAC. The connector is shielded with bronze contacts plated in nickel, and the insulator is made of white PBT material with a UL94 V-0 flammability rating. Contact resistance is a maximum of 20 mΩ, and insulation resistance is a minimum of 500 MΩ.
The jack is through-hole mounted with solder termination and includes a board lock feature for secure attachment. It is rated for 500 mating cycles and operates over a temperature range of -40°C to +85°C. The part is RoHS and REACH compliant and carries UL approval (E324776).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.42 | $4.42 |
| 10+ | $4.34 | $4.34 |
| 50+ | $4.03 | $4.03 |
| 80+ | $3.72 | $3.72 |
| 560+ | $3.41 | $3.41 |
| 1,040+ | $3.10 | $3.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The jack has a 45° angle orientation with an upward tab direction.
Yes, it is shielded with bronze contacts plated in nickel.
Rated current is 1.5 A and working voltage is 120 VAC.
The operating temperature range is -40°C to +85°C.
It is rated for 500 mating cycles.
The insulator is made of PBT with a UL94 V-0 flammability rating.
