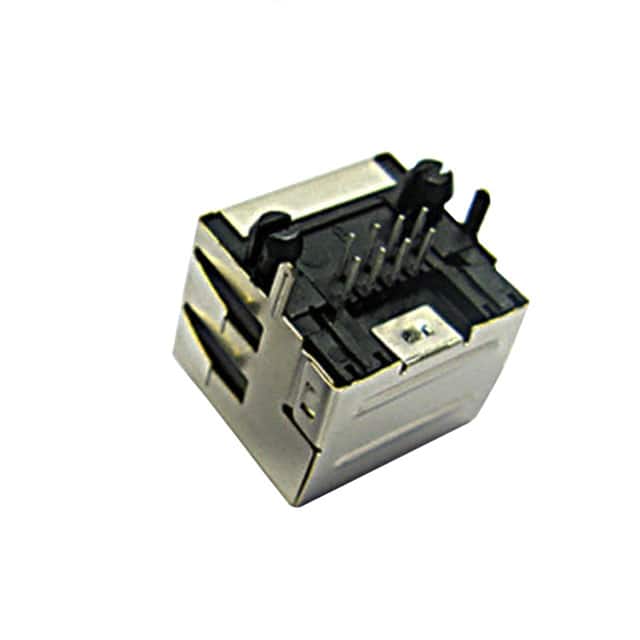

This is a Würth Elektronik 615008140621 modular jack with 8P8C positions and a right-angle orientation. It features shielded construction and Cat5 rating.

✓ Total Stock: 10 pcs

615008140621 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

615008140621 Description

Short technical summary and product information.

The Würth Elektronik 615008140621 is a shielded modular jack designed for right-angle mounting with a through-hole termination style. It features 8 positions and 8 contacts (8P8C), commonly known as RJ45, and is rated for Cat5 performance.

The jack has a copper alloy contact material with gold plating, and the insulator is made of PBT with a UL94 V-0 flammability rating. The shielding is constructed from bronze with a nickel plating and includes an EMI finger for enhanced electromagnetic interference protection.

This component operates within a temperature range of -40°C to +85°C. It has a rated current of 1.5A and a working voltage of 120V AC. The durability is rated for 500 mating cycles. The contact resistance is a maximum of 20 mΩ, and insulation resistance is a minimum of 500 MΩ.

Key features include board lock for secure mounting and a shielded design suitable for various networking and data communication applications. The right-angle orientation is beneficial for space-constrained PCB designs.

615008140621 Quick Information

Product Type: Modular Jack

Series: WR-MJ Modular Jack Tab Up

Canonical Name: Würth Elektronik 615008140621 Shielded Modular Jack

Subcategory: Modular Connector Jacks

615008140621 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

615008140621 Features

Shielded modular jack with EMI finger.
8P8C (RJ45) connector type.
Right-angle, through-hole mounting.
Cat5 rated for data transmission.
Durable with 500 mating cycles.

615008140621 Applications

Ideal for network interface cards.
Suitable for Ethernet connectivity.
Used in data communication systems.
Provides EMI protection.
Compact PCB designs.

615008140621 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions for this modular jack?

This modular jack has 8 positions and 8 contacts (8P8C).

What is the mounting type for the 615008140621?

The mounting type is Through Hole.

What is the rated current for this connector?

The rated current is 1.5 A.

What is the working voltage of this modular jack?

The working voltage is 120 V (AC).

What is the operating temperature range?

The operating temperature range is -40 °C to +85 °C.

What is the contact resistance?

The contact resistance is 20 mΩ maximum.

What is the insulation resistance?

The insulation resistance is 500 MΩ minimum.

Category	Modular Connector Jacks
Manufacturer Name	Würth Elektronik
Connector Type	Jack
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Resistance	20 mΩ max.
Contact Type	Stamped
Durability	500 Mating cycles
Features	Board Lock
Insulation Resistance	500 MΩ min.
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Insulator Material	PBT
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Pins (xPxC)	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Positions	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature	-40 °C to +85 °C
Orientation	90° Angle (Right)
Rated Current	1.5 A
Ratings	Cat5
Shielding	Shielded, EMI Finger
Shielding Material	Bronze
Shielding Plating	Nickel (Ni)
Tab Direction	Up
Termination	Solder
Termination Style	Solder
Withstanding Voltage	1000 V (AC) 1 min
Withstanding Voltage Shielding to Pin	1500 V (AC) 1 min
Working Voltage	120 V (AC)
