| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Features | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| LED Color | |
| Mating Cycles | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Rated Current | |
| Ratings | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Working Voltage |

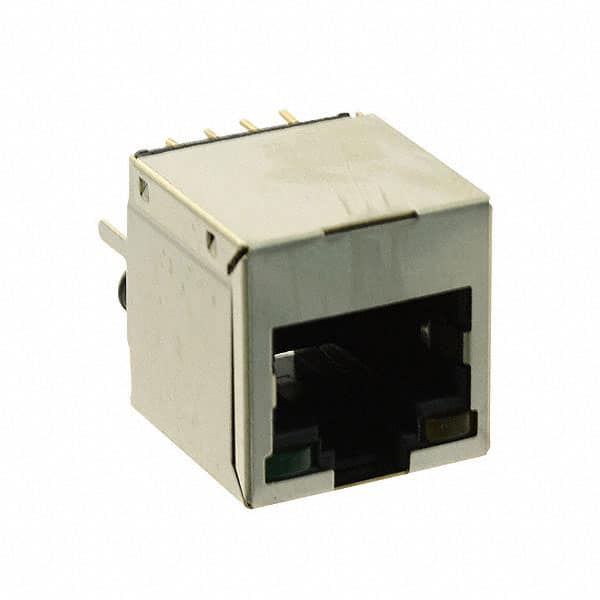

The Würth Elektronik 615008138321 is a WR-MJ series modular jack providing an 8P8C (RJ45, Ethernet) interface. This single-port connector features a vertical orientation and is fully shielded with bronze shielding plated in nickel for EMI protection.
It is designed for through-hole solder termination and includes integrated yellow-green LEDs for status indication. The insulator is made of black PBT material with a flammability rating of UL94 V-0, ensuring reliable performance in various environments. Rated for 500 mating cycles, this jack supports Cat5 performance requirements.
The electrical ratings include a working voltage of 120 V AC, withstanding voltage of 1000 V AC (pin-to-pin) and 1500 V AC (shielding-to-pin), a maximum contact resistance of 20 mΩ, and minimum insulation resistance of 500 MΩ. The operating temperature range spans -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.10 | $5.10 |
| 10+ | $5.01 | $5.01 |
| 60+ | $4.65 | $4.65 |
| 120+ | $4.29 | $4.29 |
| 540+ | $3.94 | $3.94 |
| 1,020+ | $3.58 | $3.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through hole vertical mounting with solder termination.
8P8C (8 positions, 8 contacts), compatible with RJ45 Ethernet plugs.
Cat5 (Category 5).
Yes, it is shielded with bronze material plated in nickel.
Rated current is 1.5 A and working voltage is 120 V AC.
