| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 34 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Housing Color | |
| Housing Material | |
| Insulation Resistance | |
| LED Color | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

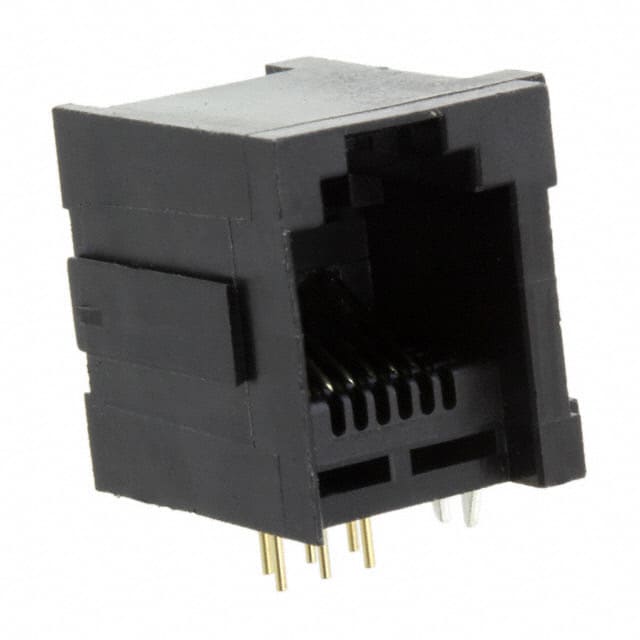

The Würth Elektronik 615006149421R is a modular connector jack from the WR-MJ series, configured with 6 positions and 6 contacts (6P6C) supporting RJ11, RJ12, RJ14, and RJ25 standards. This through-hole component features a right-angle (90°) orientation with solder termination and an unshielded design.
The jack is built with a black PBT thermoplastic housing rated UL94 V-0 for flammability resistance. Contacts are made of copper alloy with a gold plating finish, ensuring reliable electrical performance over 500 mating cycles. The contact resistance is rated at 20 mΩ maximum, and insulation resistance at 500 MΩ minimum. It includes a board lock feature for secure mounting.
Electrical ratings include a current rating of 1.5 A and a voltage rating of 120 V AC, with a dielectric withstanding voltage of 1000 V AC. The operating temperature range spans -40°C to +85°C, making it suitable for a wide range of indoor and general-purpose applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $2.03 | $2.03 |
| 90+ | $1.56 | $1.56 |
| 270+ | $1.30 | $1.30 |
| 540+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This jack has 6 positions and 6 contacts (6P6C) and supports RJ11, RJ12, RJ14, and RJ25 standards.
It is rated for 1.5 A at 120 V AC.
It is through-hole mounted with right angle orientation and solder termination.
No, it is unshielded.
