| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 20 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Durability | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Flammability Rating | |
| Insulator Material | |
| LED Color | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Rated Current | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Withstanding Voltage | |
| Working Voltage |

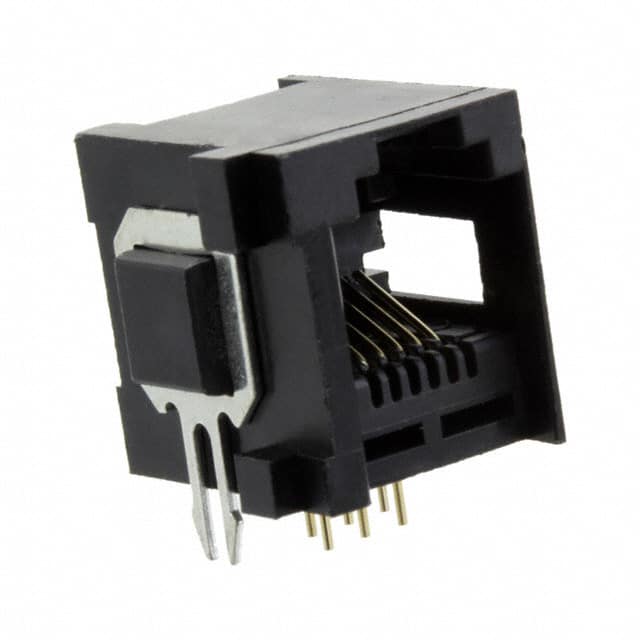

This Würth Elektronik WR-MJ modular jack features a 6P6C configuration with a single port in a right-angle orientation. The through-hole mounting and solder termination enable reliable PCB attachment. It is unshielded and does not contain LEDs. Key specifications include a rated current of 1.5 A and a working voltage of 120 V AC. The insulator is made of black PBT with a UL94 V-0 flammability rating. Contacts are made of copper alloy with gold plating, and the shielding material is brass with nickel plating. The jack includes a board lock feature for secure mounting. With an operating temperature range of -40 to +85 °C and a durability of 500 mating cycles, it is suitable for various telecommunications and networking applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.37 | $2.37 |
| 10+ | $2.01 | $2.01 |
| 90+ | $1.54 | $1.54 |
| 270+ | $1.29 | $1.29 |
| 540+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a 6P6C (6 position, 6 contact) jack, compatible with RJ11, RJ12, RJ14, and RJ25 plugs.
Rated current is 1.5 A and working voltage is 120 V AC.
It is a through hole mount connector with right angle (90°) orientation.
No, it is unshielded.
Operating temperature range is -40 to +85 °C.
