| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
495 pcs
|
495 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Durability | |
| Features | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| LED Color | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Rated Current | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Withstanding Voltage | |
| Working Voltage |

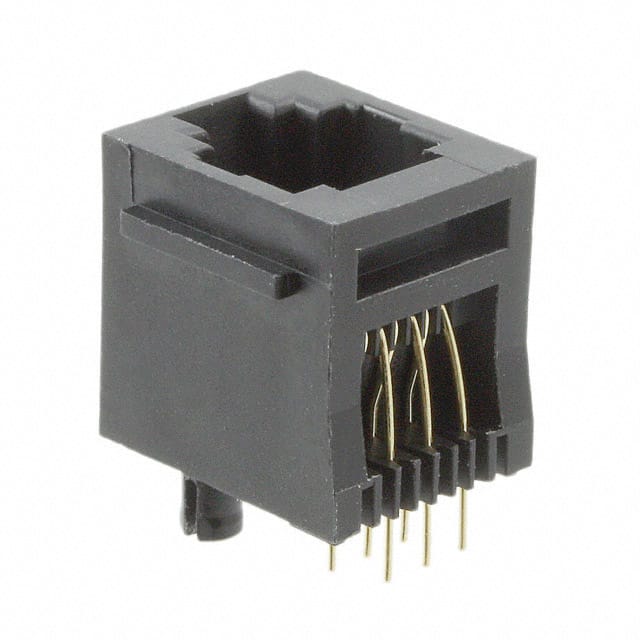

The Würth Elektronik 615006144121 is a WR-MJ series modular jack designed for RJ11, RJ12, RJ14, and RJ25 applications. It features a 6P6C contact arrangement in a single port, 1-row vertical orientation. The connector uses through-hole solder termination and is unshielded with a user-selectable tab direction. The insulator is molded from black PBT, and contacts are stamped copper alloy with gold finish. Electrical ratings include a current capacity of 1.5 A, working voltage of 120 V AC, withstanding voltage of 1000 V AC, contact resistance of 20 mΩ maximum, and insulation resistance of 500 MΩ minimum. The operating temperature range is -40 to +85°C. Mechanical features include board locks and panel stops for secure mounting. The part is RoHS and REACH conformant, and UL recognized (File E324776).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.27 | $1.27 |
| 50+ | $1.18 | $1.18 |
| 100+ | $1.08 | $1.08 |
| 504+ | $1.00 | $1.00 |
| 1,008+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part number is 615006144121, manufactured by Würth Elektronik.
It has 6 positions and 6 contacts (6P6C), compatible with RJ11, RJ12, RJ14, and RJ25.
It is rated for 1.5 A current and 120 V AC working voltage.
The jack is through-hole mounted with vertical orientation.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863 amendments.
The operating temperature range is -40°C to +85°C.
It is rated for 500 mating cycles.
