| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Durability | |
| Features | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| LED Color | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Rated Current | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Withstanding Voltage | |
| Working Voltage |

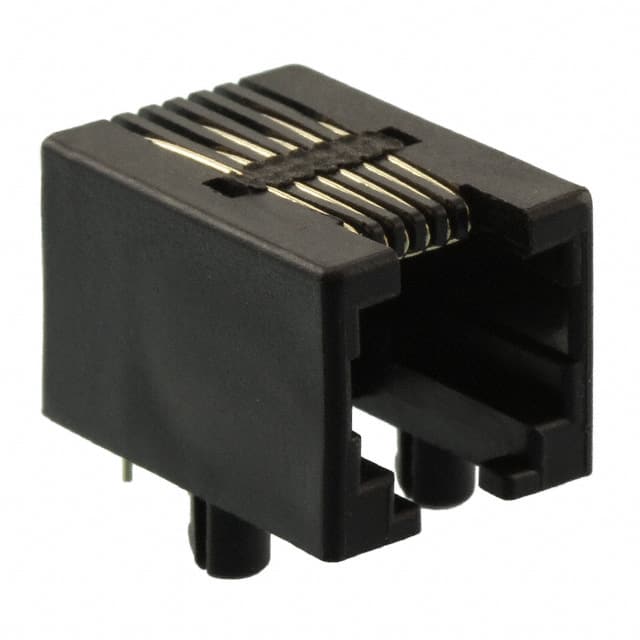

The Würth Elektronik 615006141121 is a 6P6C (6 position, 6 contact) modular jack designed for RJ11, RJ12, RJ14, and RJ25 connector standards. It features a shielded design to reduce electromagnetic interference, with through hole mounting and a 90° right angle orientation with the tab facing down. The insulator is made of black PBT material with a UL94 V-0 flammability rating, ensuring reliable performance in various environments.
This jack supports Cat5 ratings, making it suitable for basic Ethernet and telecommunication applications. Contacts are stamped from copper alloy with a gold finish, providing low contact resistance (20mOhm max) and high insulation resistance (500MOhm min). The connector can withstand 1000VAC for one minute and is rated for 1.5A current and 120VAC working voltage.
Mechanical durability is rated at 500 mating cycles. The component includes a board lock feature for secure attachment during soldering. The operating temperature range spans -40°C to +85°C. This part is RoHS and REACH compliant, as verified in the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.27 | $1.27 |
| 50+ | $1.18 | $1.18 |
| 100+ | $1.08 | $1.08 |
| 546+ | $1.00 | $1.00 |
| 1,092+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a 6P6C modular jack, compatible with RJ11, RJ12, RJ14, and RJ25 standards.
Yes, it has a shielded design.
Rated 1.5A current and 120VAC working voltage.
Through hole mount with solder termination, right angle orientation, tab down.
-40°C to +85°C.
Copper alloy contacts with gold finish.
