| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
189 pcs
|
189 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mating Cycles (Minimum @ 10 days 4 mixed gaz test - IEC 60 512) | |
| Mating Cycles (Minimum @ 4 days 4 mixed gaz test - IEC 60 512) | |
| Mating Cycles (Minimum @ no gaz test) | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

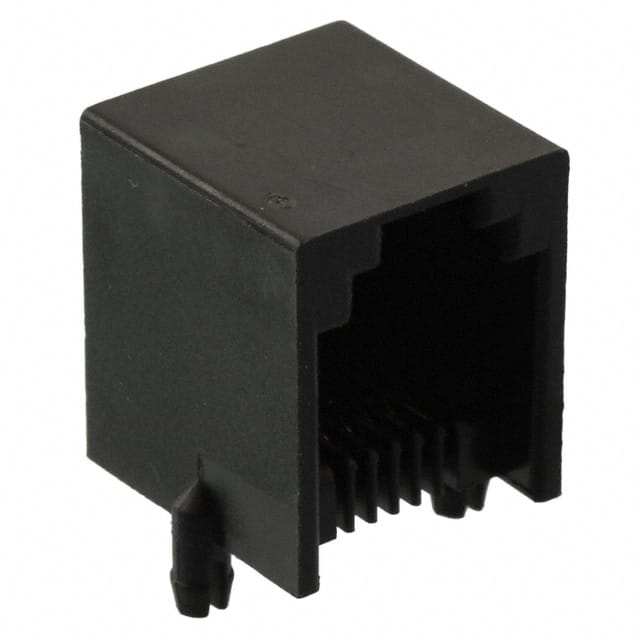

The Würth Elektronik 615006138421 is a single-port modular jack connector from the WR-MJ series, designed for 6P6C (RJ11/RJ12/RJ14/RJ25) configurations. It features a right-angle (90°) orientation with the tab facing up, making it suitable for edge-mounted or compact PCB layouts where space is constrained.
The connector uses through-hole solder termination and includes a board lock feature for mechanical stability during assembly and operation. The contacts are made of copper alloy with a gold finish, ensuring reliable electrical performance over repeated mating cycles. The part is unshielded and does not contain LEDs.
Rated for Cat5 performance, this connector is appropriate for standard Ethernet and telecom applications. The datasheet specifies mating cycle durability: 50 cycles minimum at performance level 3 (no gas test), 250 cycles at level 2 (4-day mixed gas test per IEC 60512), and 500 cycles at level 1 (10-day mixed gas test per IEC 60512).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.62 | $0.62 |
| 50+ | $0.60 | $0.60 |
| 120+ | $0.57 | $0.57 |
| 600+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a 6P6C modular jack connector, compatible with RJ11, RJ12, RJ14, and RJ25 standards.
The connector uses through-hole mounting with solder termination.
No, this connector is unshielded.
The contacts are made of copper alloy with a gold finish.
Yes, it includes a board lock feature.
Minimum 50 cycles at performance level 3, 250 cycles at level 2, and 500 cycles at level 1.
The connector is rated for Cat5 applications.
