| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,490 pcs
|
2490 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Gender | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL Approval | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

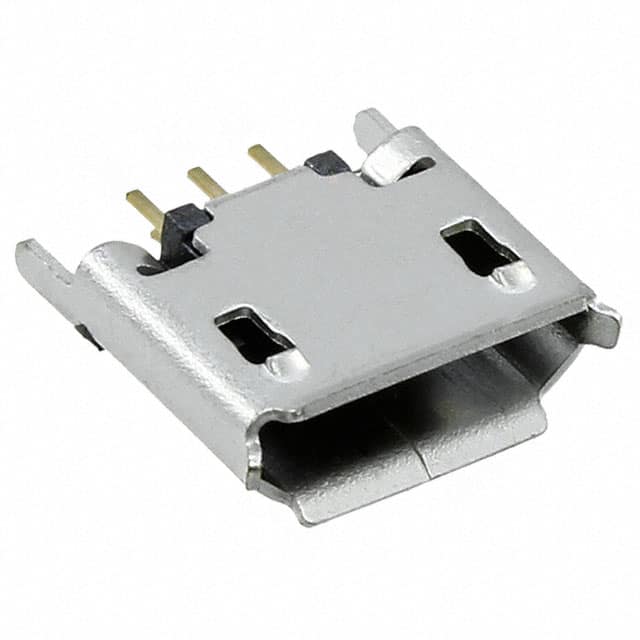

The Würth Elektronik 614105150721 is a Micro USB 2.0 Type B receptacle connector designed for vertical through-hole mounting. It features 5 contacts with gold plating on copper alloy, ensuring reliable electrical connections. The connector is shielded with stainless steel and matte tin plating, providing EMI protection.
This connector is rated for a current of 1.8 A and a working voltage of 30 V AC. It has a contact resistance of 30 mΩ maximum and an insulation resistance of 1000 MΩ minimum. The operating temperature range is -40°C to +85°C, making it suitable for a wide range of environments.
The insulator is made of LCP with a UL94 V-0 flammability rating. The connector is designed for a minimum of 10,000 mating cycles, ensuring durability in repeated use applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 10+ | $1.93 | $1.93 |
| 50+ | $1.79 | $1.79 |
| 100+ | $1.64 | $1.64 |
| 500+ | $1.43 | $1.43 |
| 1,500+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is rated for 1.8 A.
The working voltage is 30 V AC, and the withstanding voltage is 100 V AC.
It uses vertical through-hole mounting with solder termination.
It has 5 contacts.
The operating temperature range is -40°C to +85°C.
Yes, it is shielded with stainless steel and matte tin plating.
The connector is rated for a minimum of 10,000 mating cycles.
