| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 5 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

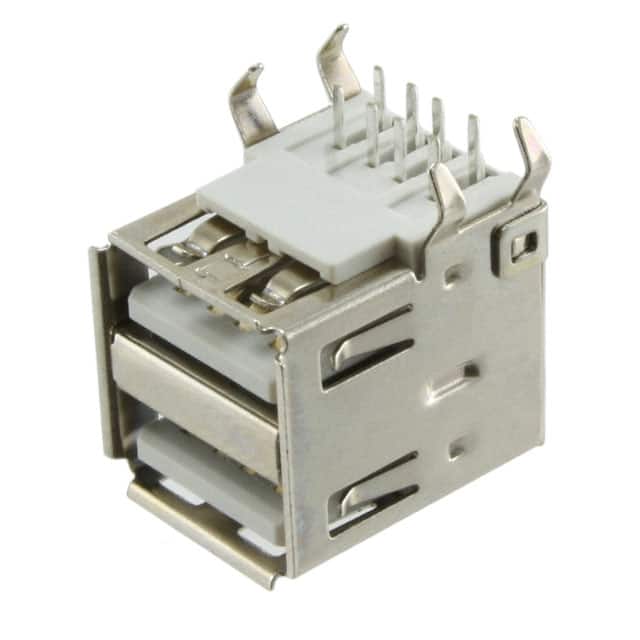

This USB connector assembly, part number 61400826021 from W rth Elektronik, is a USB-A (USB Type-A) stacked receptacle designed for USB 2.0 applications. It features a through hole, right angle mounting orientation and is shielded for EMI protection. The connector has a horizontal mounting feature and includes a board lock for secure attachment to the PCB. It offers 2 ports with a total of 8 contacts and is rated for 1.5 A per contact at 30 V. The operating temperature range is -40 to 105 , and it is rated for 1500 mating cycles. Termination is via solder. The connector is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 10+ | $1.86 | $1.86 |
| 50+ | $1.75 | $1.75 |
| 100+ | $1.57 | $1.57 |
| 250+ | $1.55 | $1.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB 2.0
1.5 A
-40 to 105
1500 cycles
Yes, shielded
