| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flammability Rating | |
| Gender | |
| Insulator Material | |
| Insulator Resistance | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Packaging Method | |
| Quantity per Carton | |
| Quantity per Tray | |
| Shielding | |
| Shielding Material | |
| Specifications | |
| Standard Certified | |
| Tape & Reel | |
| Termination | |
| Voltage |

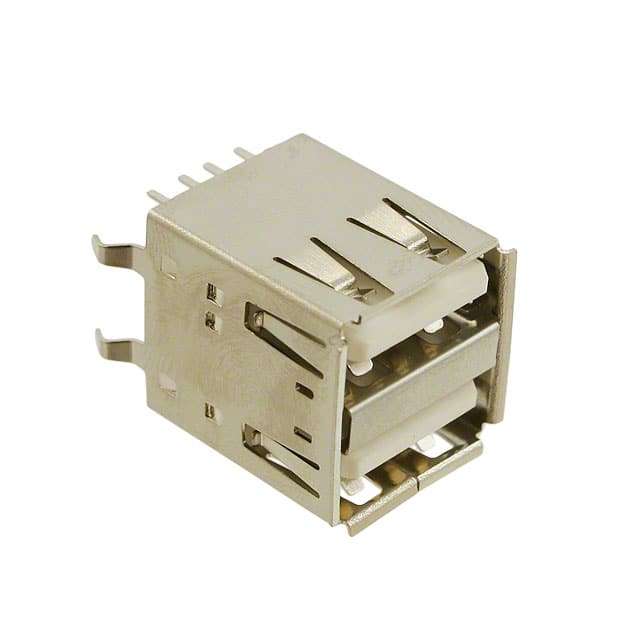

The Würth Elektronik 614008235023 is a dual-stacked USB 2.0 Type A receptacle connector designed for vertical through-hole mounting. It features 8 contacts arranged as two stacked USB Type A ports, each with 4 contacts. The connector is rated for 1.5A per contact and a working voltage of 30VAC.
The connector is shielded with a brass, nickel-plated shell and includes a board lock for secure PCB attachment. The insulator is made of PBT with a UL94 V-0 flammability rating. Contacts are copper alloy with selective gold plating, ensuring reliable signal integrity over 1500 mating cycles. The operating temperature range is -40°C to 105°C.
Packaging is in trays of 50 pieces, with 2800 pieces per carton. This connector is RoHS compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.81 | $2.81 |
| 10+ | $2.48 | $2.48 |
| 50+ | $2.34 | $2.34 |
| 100+ | $2.10 | $2.10 |
| 250+ | $1.91 | $1.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1.5 A per contact.
The working voltage is 30 VAC.
It uses through-hole mounting, vertical orientation.
Yes, it is RoHS compliant and lead-free.
The operating temperature range is -40°C to 105°C.
It is rated for 1500 mating cycles.
