| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
118 pcs
|
118 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Mating Cycles | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Withstanding Voltage |

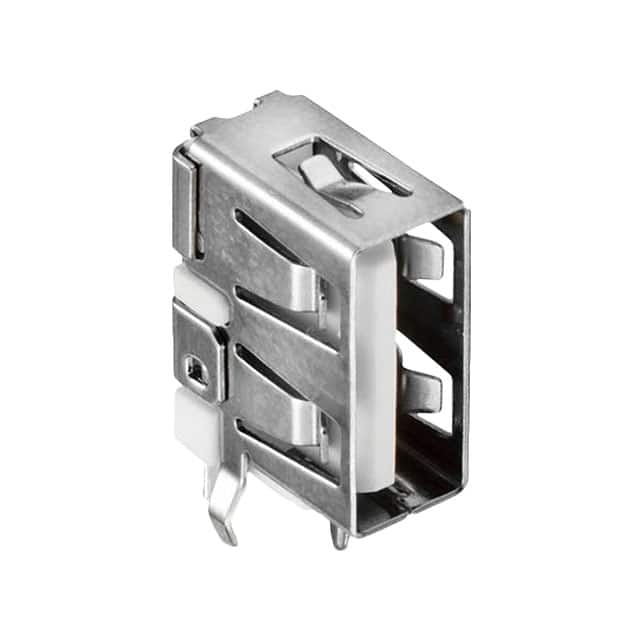

The Würth Elektronik 614004184726 is a WR-COM USB 2.0 Type A Up Right Short receptacle connector. It features a USB-A (USB TYPE-A) connector type with a receptacle gender and 4 contacts in a single port configuration. The connector is designed for through hole, right angle mounting with a vertical mounting feature and solder termination. It is shielded with a steel shell and nickel plating, and includes a board lock feature for secure attachment. The insulator is made of PBT with a UL94 V-0 flammability rating. Electrical ratings include a maximum current rating of 2 A, nominal voltage of 30 VAC, minimum withstanding voltage of 500 VAC, maximum contact resistance of 30 mΩ, and minimum insulation resistance of 1000 MΩ. The operating temperature range is -40°C to 85°C, and it is rated for a minimum of 5000 mating cycles. Contacts are made of copper alloy with gold plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.19 | $1.19 |
| 50+ | $1.05 | $1.05 |
| 90+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 2 A.
The nominal voltage rating is 30 VAC.
It is through hole, right angle mounting.
It has 4 contacts.
The operating temperature range is -40°C to 85°C.
Yes, it is shielded with a steel shell and nickel plating.
It is rated for a minimum of 5000 mating cycles.
