| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
122 pcs
|
122 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Pins | |
| Rated Current | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

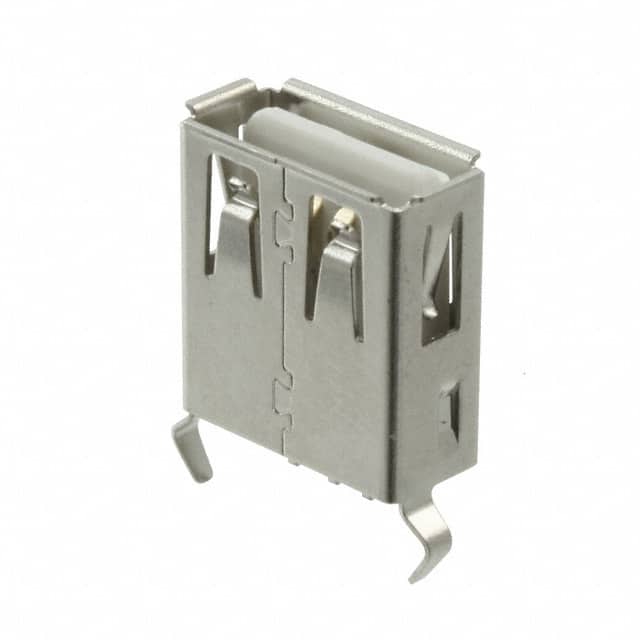

The Würth Elektronik WR-COM 614004135023 is a USB 2.0 Type-A receptacle connector designed for reliable data and power transmission. It features 4 contacts arranged in a single port, with a through hole mounting style and vertical orientation for straightforward PCB integration.
This connector is rated for 1.5 A current and 30 VAC working voltage, with a withstanding voltage of 750 VAC. Contact resistance is 20 mΩ maximum, and insulation resistance is 1000 MΩ minimum. The operating temperature range spans -40°C to 105°C, and the connector is rated for 1500 mating cycles.
Constructed with a PBT insulator, copper alloy contacts with selective gold plating, and a brass shield with nickel plating, the connector includes a board lock feature for secure attachment. It is RoHS and REACH compliant, and carries UL recognition (E323964).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 10+ | $1.86 | $1.86 |
| 50+ | $1.75 | $1.75 |
| 100+ | $1.57 | $1.57 |
| 250+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5 A
30 VAC
Through hole, vertical orientation
4 contacts
-40°C to 105°C
Yes, it is shielded with a brass shield and nickel plating.
1500 mating cycles
