| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flammability Rating | |
| Gender | |
| Insulator Material | |
| Insulator Resistance | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

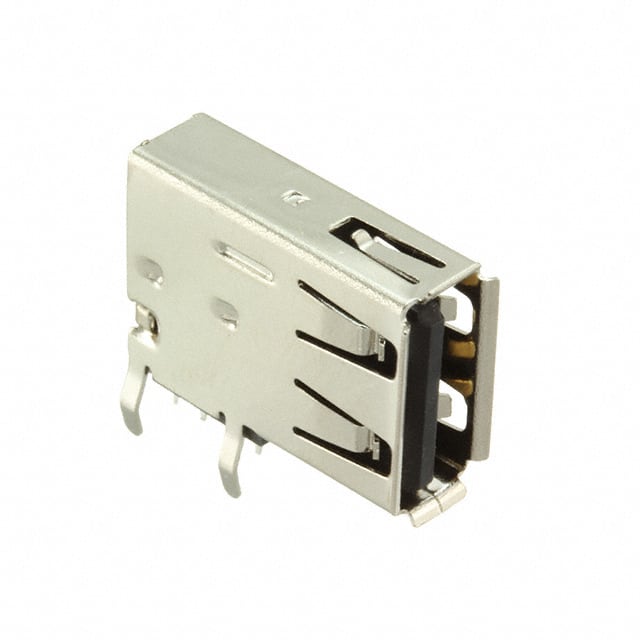

The Würth Elektronik 6140041347261 is a USB 2.0 Type A receptacle connector designed for reliable data and power connections. It features 4 contacts with selective gold plating on copper alloy, ensuring low contact resistance (20 mΩ max) and durability over 1500 mating cycles. The connector is shielded with brass Ni plated shielding for EMI protection.
This right angle through-hole mount connector includes a board lock feature for secure PCB attachment. It is rated for 1.5 A current and 30 V voltage, with an operating temperature range of -40°C to 105°C. The insulator is made of PBT with UL94-V0 flammability rating, and the connector is RoHS compliant and lead-free.
Packaged in a tray, this connector is suitable for wave soldering per JEDEC lead-free standards. It is ideal for applications requiring a compact, shielded USB 2.0 interface in industrial, consumer, or automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.10 | $3.10 |
| 50+ | $2.75 | $2.75 |
| 100+ | $2.39 | $2.39 |
| 500+ | $2.08 | $2.08 |
| 1,000+ | $1.89 | $1.89 |
| 2,500+ | $1.71 | $1.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 contacts.
1.5 A maximum.
30 V maximum.
Through hole, right angle.
-40°C to 105°C.
1500 cycles.
Yes, shielded with brass Ni plated shielding.
