| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage | |
| Working Voltage |

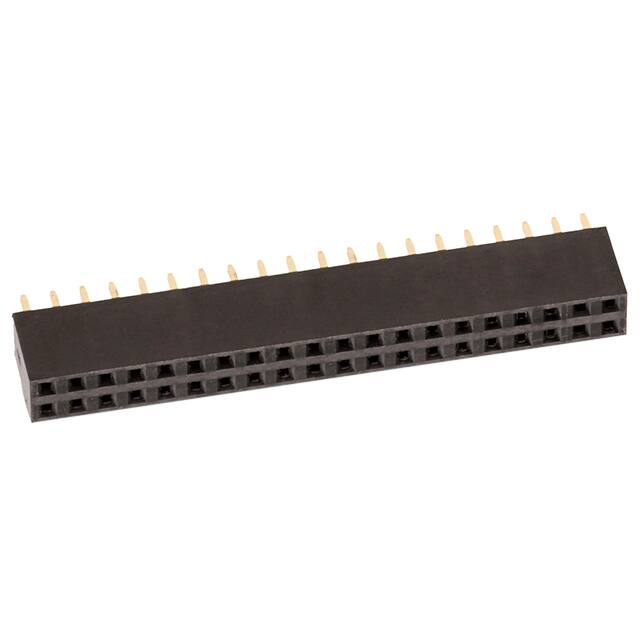

The 61304021821 is a 40-position dual socket header from Würth Elektronik's WR-PHD series. This rectangular connector features a receptacle design with forked contacts arranged in two rows at a 2.54mm pitch. It is designed for board-to-board applications and mounts via through-hole solder termination.
Electrically, the connector is rated for 3A current and 250VAC working voltage, with a maximum contact resistance of 20mΩ and minimum insulation resistance of 1000MΩ. It can withstand 500VAC for 1 minute. The operating temperature range per datasheet is -40°C to +105°C.
The insulator is made of PBT (UL94 V-0 rated) and contacts are copper alloy with gold plating. The connector has a durability of 25 mating cycles. Dimensions include a length of 51.3mm and an insulation height of 8.4mm.
This connector is suitable for general electronic equipment requiring reliable board-to-board interconnections. It is RoHS compliant and REACH conform. Not authorized for safety-critical applications without separate agreement per manufacturer guidelines.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.91 | $1.91 |
| 10+ | $1.75 | $1.75 |
| 50+ | $1.56 | $1.56 |
| 240+ | $1.37 | $1.37 |
| 1,040+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.54mm (0.1 inch).
3A per contact.
250VAC.
Through hole with solder termination.
-40°C to +105°C per datasheet.
Yes, compliant with 2011/65/EU&2015/863.
