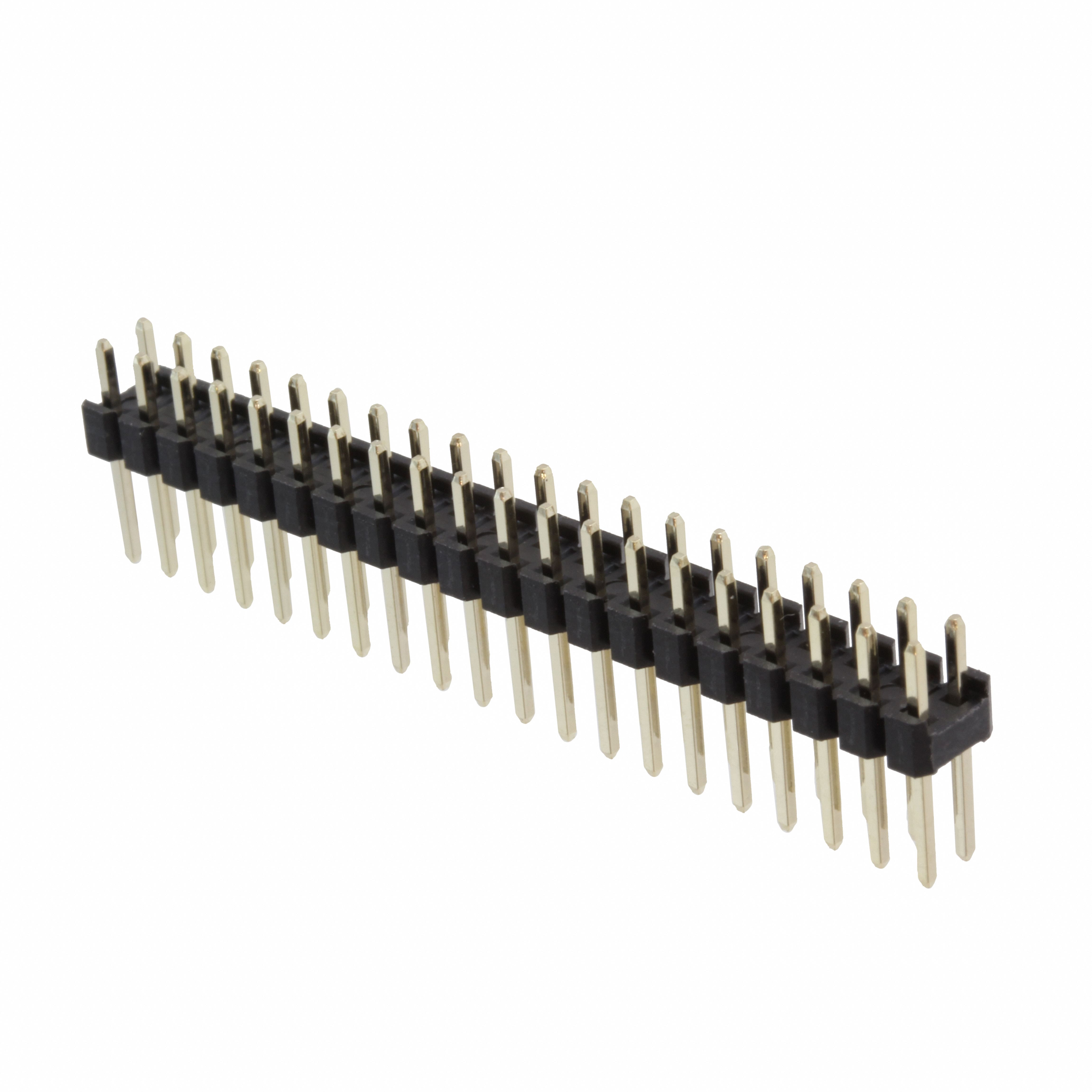

The Würth Elektronik 61304021121 is a 40-position unshrouded male pin header arranged in a 2 x 20 dual-row configuration. It has a 2.54mm pitch and 2.54mm row spacing, making it compatible with standard 2.54mm (0.100 inch) interconnection systems. This through-hole component uses solder termination and is designed for board-to-board or cable connections. The header features a push-pull mating fastening type.
Electrical ratings include a maximum current of 3A and a maximum voltage of 250V AC. The contact resistance is rated at 20 mΩ maximum, and the insulation resistance is a minimum of 1000 MΩ. The product is capable of withstanding 500V AC for one minute. Mating durability is specified for 25 cycles.
The contacts are stamped from copper alloy and finished with gold. The insulator is black PA6T with a UL94 V-0 flammability rating. The operating temperature range spans from -40°C to +105°C. The mating contact length is 6.00mm, overall contact length is 11.54mm, and insulation height is 2.54mm.
This component is designed for use in general electronic equipment, as stated by Würth Elektronik. It is not authorized for applications that require higher safety and reliability standards, such as military, aerospace, or medical equipment, unless specifically agreed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
| 10+ | $1.70 | $1.70 |
| 25+ | $1.42 | $1.42 |
| 50+ | $1.18 | $1.18 |
| 100+ | $1.07 | $1.07 |
| 500+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions arranged in a 2 x 20 dual-row configuration.
The pitch is 2.54mm (0.100 inches).
The maximum current rating is 3A.
The maximum voltage rating is 250V AC.
It is a through-hole connector with solder termination.
-40°C to +105°C.
Yes, per the datasheet it is RoHS compliant (2011/65/EU & 2015/863).
