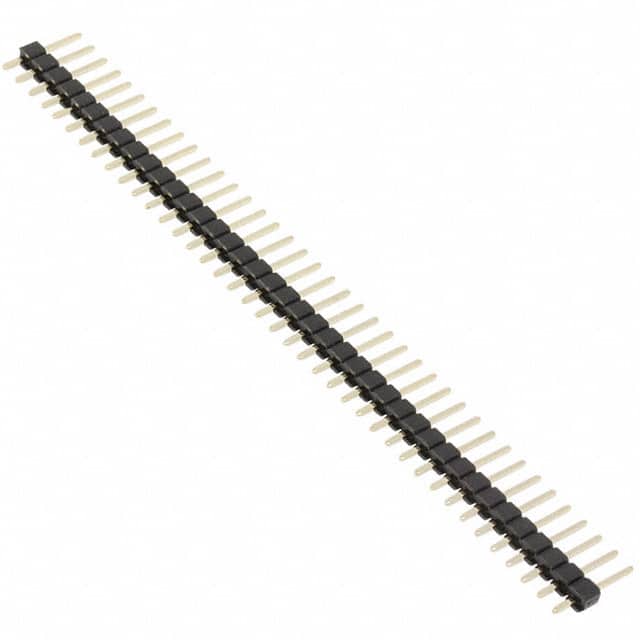

61304011121 This is a 40-position, single-row, 2.54mm pitch unshrouded male pin header from Würth Elektronik. It features gold-plated copper alloy contacts, through-hole mounting, and is rated for 3A current and 250V voltage.
Mfr Part #:

61304011121

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 40-position, single-row, 2.54mm pitch unshrouded male pin header from Würth Elektronik. It features gold-plated copper alloy contacts, through-hole mounting, and is rated for 3A current and 250V voltage.
✓ Total Stock: 416 pcs
$ Price Range: $0.78 - $1.46

61304011121 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
348 pcs
On Request
348 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
68 pcs
On Request
68 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61304011121 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
SVHC Present
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

61304011121 Description

Short technical summary and product information.

The Würth Elektronik 61304011121 is a 40-position, single-row, unshrouded male pin header with a 2.54mm pitch. It features square gold-plated copper alloy contacts and a black PA6T insulator rated UL94 V-0. The through-hole design with solder termination supports board-to-board or cable-to-board connections. Electrical ratings include 3A current, 250V AC voltage, with a maximum contact resistance of 20 mOhm and insulation resistance >1000 MOhm. The operating temperature range is -40°C to 105°C. The component is RoHS compliant and manufactured to quality class 3 per CECC 75 301-802. It is certified under standard E323964 and is compatible with JEDEC lead-free wave soldering processes. Packaging is in a bag.

61304011121 Quick Information

Product Type: Pin Header
Series: WR-PHD
Canonical Name: Header, 40 Position, 1 Row, 2.54mm Pitch, Unshrouded, Male Pin, Through Hole
Subcategory: Unshrouded Header, Male Pins

61304011121 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

61304011121 Estimated Pricing

Qty Low High
1+ $1.46 $1.46
10+ $1.24 $1.24
25+ $1.03 $1.03
50+ $0.86 $0.86
100+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

61304011121 Features

  • 40-position single-row unshrouded male pin header.
  • 2.54mm pitch with through-hole solder termination.
  • Gold-plated copper alloy contacts for reliable connectivity.
  • Rated for 3A current and 250V voltage.
  • Operating temperature range -40°C to 105°C.

61304011121 Applications

  • Used in board-to-board and cable-to-board interconnects.
  • Suitable for general-purpose electronic equipment.
  • Ideal for prototyping and production in industrial controls.
  • Can be used in consumer electronics and instrumentation.

61304011121 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

40 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

3A.

What is the voltage rating?

250V.

What is the mounting type?

Through hole, solder termination.

What is the operating temperature range?

-40°C to 105°C.

Is this component RoHS compliant?

Yes, RoHS compliant.
