Mfr Part #:

61302821121

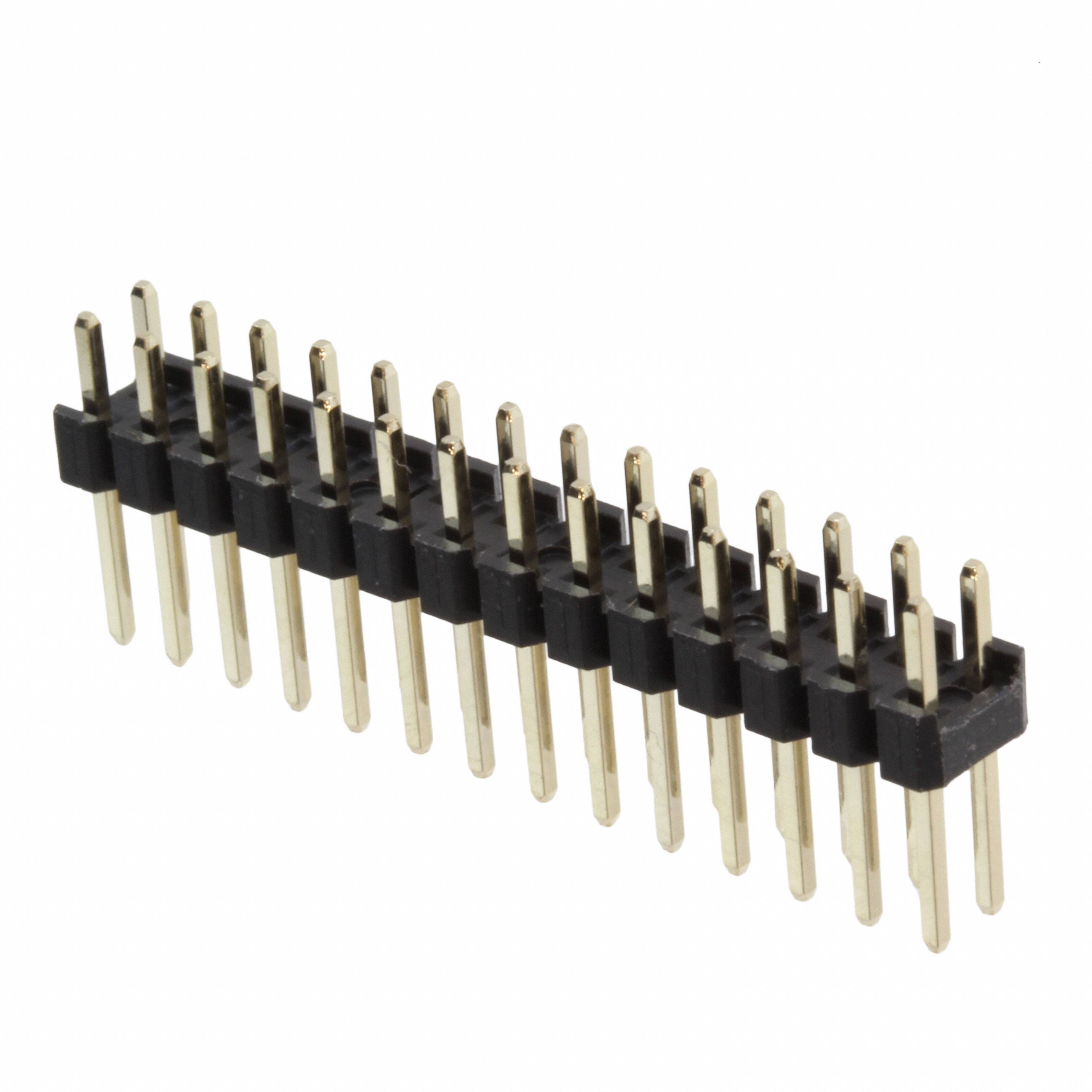

This is a 28-position, 2-row, 2.54mm pitch male pin header from Würth Elektronik. It features through-hole mounting, gold-plated contacts, and is RoHS compliant.

✓ Total Stock: 6 pcs

$ Price Range: $0.85 - $1.58

61302821121 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	6 pcs On Request	6 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

61302821121 Description

Short technical summary and product information.

The Würth Elektronik 61302821121 is a 28-position, dual-row, 2.54mm pitch unshrouded pin header, designed for board-to-board or cable connections. It features a through-hole mounting with solder termination and gold-plated copper alloy contacts for reliable electrical performance. The header is rated for a current of 3A and a working voltage of 250V AC, with an operating temperature range of -40°C to 105°C, making it suitable for a wide range of applications.

The insulator is made of black PA6T nylon 6T, meeting UL94 V-0 flammability rating. The contact resistance is 20 mOhm max and insulation resistance is greater than 1000 MOhm. The dielectric withstanding voltage is 500V AC per minute. The part is packaged in a bag and is RoHS and lead-free compliant.

This header is suitable for use in general electronics equipment. It is rated for quality class 3 as per CECC 75 301-802. The overall contact length is 0.454 inches (11.54 mm) with a contact length of 6.00 mm.

61302821121 Quick Information

Product Type: Pin Header

Series: WR-PHD

Canonical Name: Würth Elektronik 61302821121 2.54mm Dual Row Pin Header, 28 Positions, Through Hole, Gold Contacts

Subcategory: Unshrouded Header

61302821121 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free and RoHS

61302821121 Estimated Pricing

Qty	Low	High
1+	$1.58	$1.58
10+	$1.34	$1.34
25+	$1.12	$1.12
50+	$0.93	$0.93
100+	$0.85	$0.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

61302821121 Features

28 positions in dual row configuration.
2.54mm (0.100") pitch through-hole header.
Gold-plated copper alloy contacts.
Rated for 3A and 250V AC.
Unshrouded push-pull fastening type.

61302821121 Applications

Used for board-to-board stacking connections.
Suitable for cable-to-board interconnects.
Ideal for general purpose electronic systems.
Common in industrial control and automation.

61302821121 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 61302821121 have?

28 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100")

What is the current rating?

3A.

What is the voltage rating?

250V AC.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Gold.

Category	Headers, Male Pins
Manufacturer Name	Würth Elektronik
AEC Qualified	No
Automotive Grade	No
Connector Type	Header
Contact Finish	Gold
Contact Length	6.00mm (0.236")
Contact Material	Copper Alloy
Contact Resistance	20 mOhm Max
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Dielectric Withstanding Voltage	500V AC/MN
Fastening Type	Push-Pull
Industrial Grade	No
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polyamide (PA6T), Nylon 6T
Insulation Resistance	>1000 MOhm
Lead Spacing	2.54 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Overall Contact Length	0.454" (11.54mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	250V
