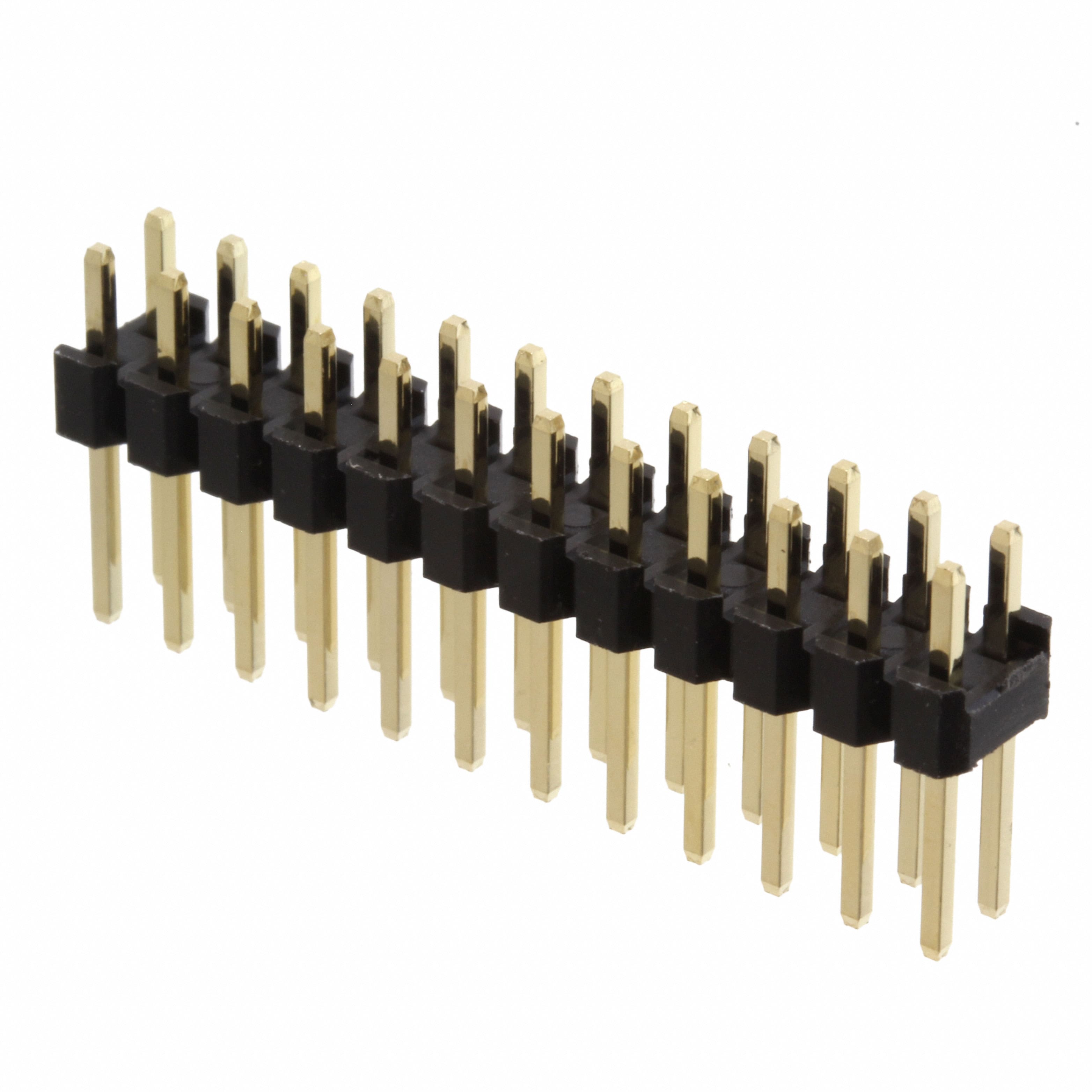

61302421121 Unshrouded dual pin header with 24 positions in 2 rows at 2.54mm pitch. Through hole solder termination with gold plated copper alloy contacts.
Mfr Part #:

61302421121

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Unshrouded dual pin header with 24 positions in 2 rows at 2.54mm pitch. Through hole solder termination with gold plated copper alloy contacts.
✓ Total Stock: 6 pcs
$ Price Range: $0.81 - $1.50

61302421121 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61302421121 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Length - Mating
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

61302421121 Description

Short technical summary and product information.

This Würth Elektronik 61302421121 is a 2.54mm pitch dual pin header designed for board-to-board or cable connections. It features 24 positions arranged in 2 rows with all positions loaded. The unshrouded male pin header uses square copper alloy contacts with gold plating for reliable electrical performance.



Rated for 3A current and 250V AC working voltage, the header offers a maximum contact resistance of 20 mOhm and minimum insulation resistance of 1000 MOhm. The dielectric withstanding voltage is 500V AC. Operating temperature range is -40°C to 105°C.



The insulator is made of black PA6T nylon with UL94 V-0 flammability rating. The component is through hole mounted and terminated by soldering. It is RoHS compliant and lead free. Packaging is in bags.

61302421121 Quick Information

Product Type: Header, Male Pins
Series: WR-PHD
Canonical Name: 2.54mm Dual Pin Header, 24 Positions, 2 Rows, Through Hole, Unshrouded
Subcategory: Unshrouded Header

61302421121 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

61302421121 Estimated Pricing

Qty Low High
1+ $1.50 $1.50
10+ $1.27 $1.27
25+ $1.06 $1.06
50+ $0.88 $0.88
100+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

61302421121 Features

  • 24 positions in 2 rows at 2.54mm pitch.
  • Gold plated copper alloy contacts.
  • Rated for 3A and 250V AC operation.
  • Through hole solder termination.
  • RoHS compliant and lead free.

61302421121 Applications

  • Suitable for board-to-board connections.
  • Used in general electronic equipment.
  • Ideal for signal and power distribution.
  • Compatible with standard 2.54mm headers.

61302421121 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 2.54mm (0.100").

How many positions does this header have?

It has 24 positions arranged in 2 rows.

What is the current rating?

The current rating is 3A.

What is the voltage rating?

The voltage rating is 250V AC.

What is the mounting type?

Through hole.
