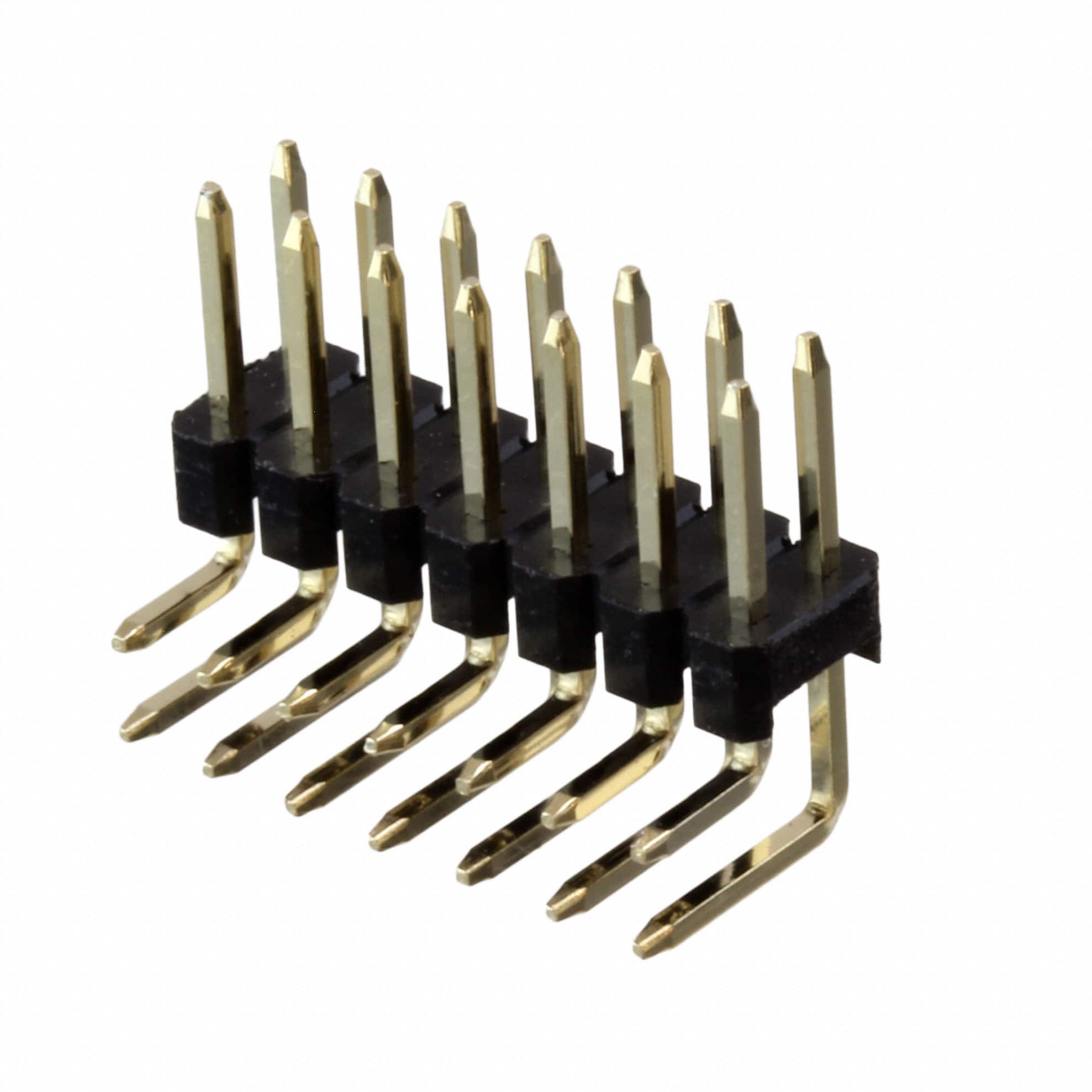

The 61301421021 is a 14-position, 2-row, 2.54mm pitch right-angle through-hole header from Würth Elektronik's WR-PHD series. It features unshrouded male pins with a square contact shape, gold plating, and a copper alloy contact material. The insulator is made of black PA6T (Nylon 6T) with a UL94 V-0 flammability rating.
This header is rated for 3A current and 250V AC working voltage, with a withstanding voltage of 500V AC for 1 minute. Contact resistance is 20 mΩ and insulation resistance is 1000 MΩ minimum. The operating temperature range is -40°C to +105°C, and the connector is rated for 25 mating cycles.
The right-angle mounting style allows for a low-profile connection perpendicular to the PCB, making it suitable for board-to-board or cable-to-board applications. The 2.54mm pitch and row spacing are standard for breadboard and prototyping, and the push-pull fastening type enables easy mating and unmating.
The header is through-hole mounted with solder termination, providing a robust mechanical connection. The overall length is 17.78mm with a pin-to-pin (middle) spacing of 15.24mm. The contact length is 6.00mm and the insulation height is 5.08mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.89 | $0.89 |
| 25+ | $0.74 | $0.74 |
| 50+ | $0.62 | $0.62 |
| 100+ | $0.56 | $0.56 |
| 1,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 61301421021 has 14 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The rated current is 3A.
The working voltage is 250V AC, with a withstanding voltage of 500V AC for 1 minute.
It is a through-hole, right-angle mount with solder termination.
The operating temperature range is -40°C to +105°C.
The contacts are made of copper alloy with a gold finish.
