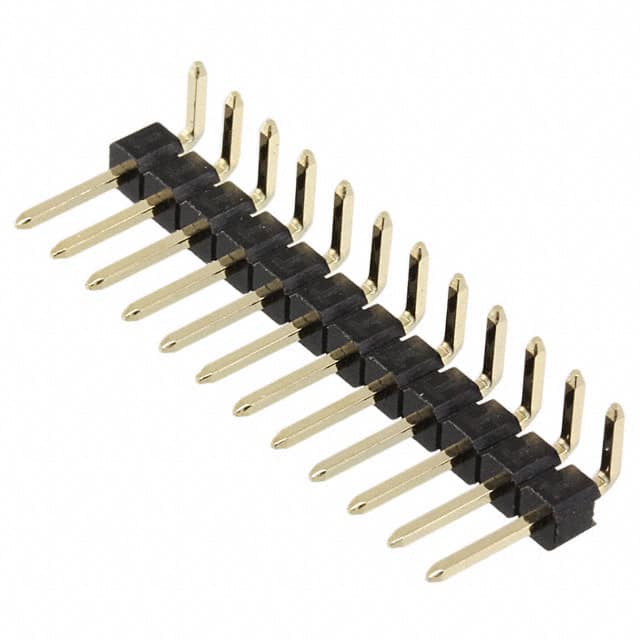

The Würth Elektronik 61301211021 is a 12-position, single-row, right angle male pin header designed for board-to-board or cable connections. It features a 2.54mm (0.100") pitch, unshrouded design, and through-hole mounting with solder termination. The contacts are made of copper alloy with gold plating, providing reliable electrical performance.
Electrically, the header is rated for 3A current and 250V AC working voltage, with a maximum contact resistance of 20 mOhm and minimum insulation resistance of 1000 MOhm. It withstands 500V AC dielectric strength. The operating temperature range is -40°C to 105°C, making it suitable for a wide variety of environments.
The insulator is made of black PA6T (Nylon 6T) thermoplastic with a flammability rating of UL94 V-0. The component meets quality class 3 per CECC 75 301-802. It is RoHS compliant and lead-free. Packaging is in bag format.
This header is commonly used in general electronic equipment where a reliable, cost-effective right-angle connection is required. Its standard 2.54mm pitch ensures compatibility with many prototyping boards and production PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.91 | $0.91 |
| 10+ | $0.78 | $0.78 |
| 25+ | $0.65 | $0.65 |
| 50+ | $0.54 | $0.54 |
| 100+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions in a single row.
2.54mm (0.100 inches).
3A.
250V AC.
Through hole, right angle.
-40°C to 105°C.
Gold plating.
