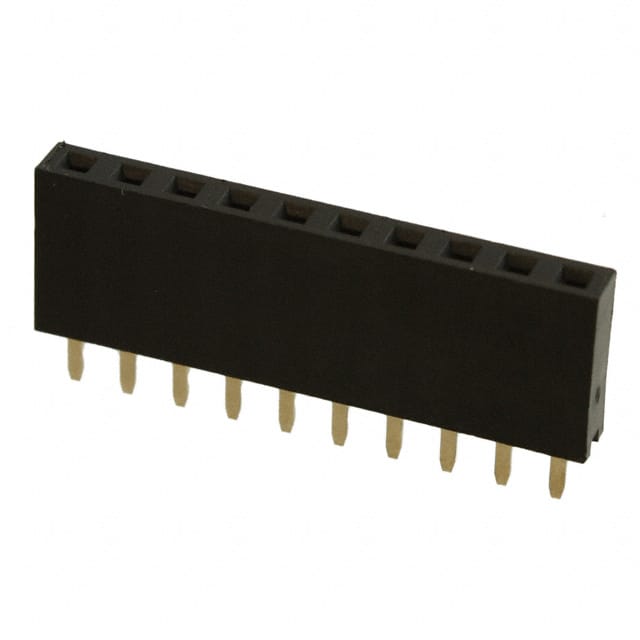

61301011821 Würth Elektronik 61301011821 is a 10 position single row through hole header with 2.54mm pitch. Gold plated forked contacts and black PBT insulator rated UL94 V-0.
Mfr Part #:

61301011821

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 61301011821 is a 10 position single row through hole header with 2.54mm pitch. Gold plated forked contacts and black PBT insulator rated UL94 V-0.
✓ Total Stock: 1,100 pcs
$ Price Range: $0.50 - $0.66

61301011821 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
1,100 pcs
On Request
1100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61301011821 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulator Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Style
Termination
Voltage Rating
View Similar Products (0)

61301011821 Description

Short technical summary and product information.

The Würth Elektronik 61301011821 is a 10 position, single row, through hole header connector designed for board-to-board applications. It features a 2.54mm (0.100") pitch and a push-pull fastening type with forked contacts.



The contact material is copper alloy with a gold finish. The black PBT insulator is rated UL94 V-0 for flammability. The connector operates over a temperature range of -40°C to +125°C and is rated for 3A current and 250VAC voltage.



Through hole termination with solder contacts ensures reliable mechanical and electrical connections. The insulation height is 8.51mm and contact length is 3.10mm. This connector is RoHS compliant and lead free.

61301011821 Quick Information

Product Type: Header Connector
Series: WR-PHD
Canonical Name: Würth Elektronik 61301011821 10 Position 2.54mm Pitch Single Row Through Hole Header, Forked Contact, Gold Plating, Black PBT Insulator
Subcategory: Headers, Receptacles, Female Sockets

61301011821 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

61301011821 Estimated Pricing

Qty Low High
1+ $0.66 $0.66
10+ $0.65 $0.65
50+ $0.60 $0.60
100+ $0.55 $0.55
320+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

61301011821 Features

  • 10 position single row through hole header.
  • 2.54mm pitch with gold plated contacts.
  • UL94 V-0 rated black PBT insulator.
  • Rated for 3A current and 250VAC.
  • RoHS compliant and lead free.

61301011821 Applications

  • Board-to-board interconnections in electronic assemblies.
  • General purpose signal and power routing.
  • Industrial control modules and instrumentation.
  • Prototyping and test fixture wiring.

61301011821 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions for the 61301011821?

The 61301011821 has 10 positions, all loaded, in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the current rating of the 61301011821?

The current rating is 3A.

What is the voltage rating of the 61301011821?

The voltage rating is 250VAC.

What mounting type does this header use?

The mounting type is through hole with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

Is the 61301011821 RoHS compliant?

Yes, it is RoHS compliant and lead free.
