| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

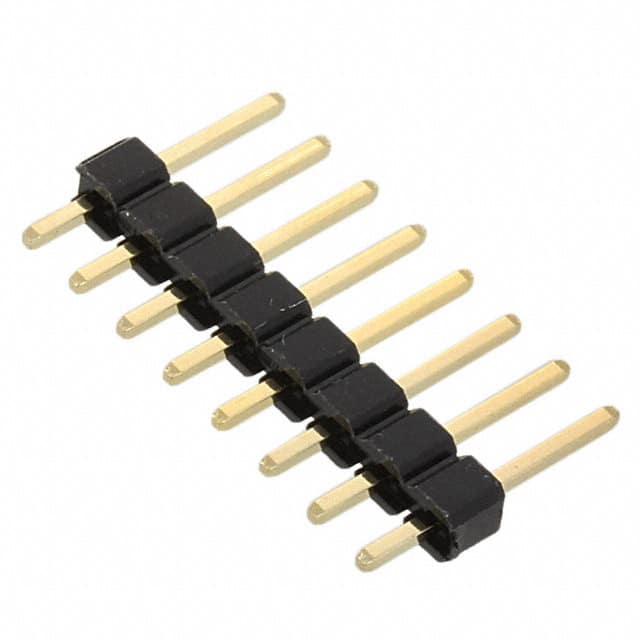

The 61300811121 is a WR-PHD series pin header from Würth Elektronik. It features 8 positions arranged in a single row with a standard 2.54mm (0.100 inch) pitch. The connector uses through hole mounting for secure attachment to printed circuit boards.
Electrically, it is rated for 3A maximum current and 250V AC voltage. The square male pins have a contact length of 6.00mm and an overall contact length of 11.54mm. The insulation height is 2.54mm, matching the pitch. The connector type is unshrouded, with a push-pull fastening mechanism and solder termination.
Constructed with a copper alloy contact material and gold plated finish, the header offers reliable electrical connections. The insulator is made of polyamide (PA6T) with a UL94 V-0 flammability rating, and the color is black. The datasheet specifies a durability of 25 mating cycles.
Designed for board-to-board or cable style connections, this pin header is suitable for general electronic equipment. The overall length of the connector is 20.32mm, with a pin-to-pin center distance of 17.78mm. The recommended hole pattern dimensions are provided in the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.34 | $0.34 |
| 25+ | $0.28 | $0.28 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.21 | $0.21 |
| 1,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single row.
2.54 mm (0.100 inches).
3 amps maximum.
250 V AC maximum.
Through hole mounting.
25 mating cycles.
Gold plating.
