| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2345 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Rated Current | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage | |
| Working Voltage |

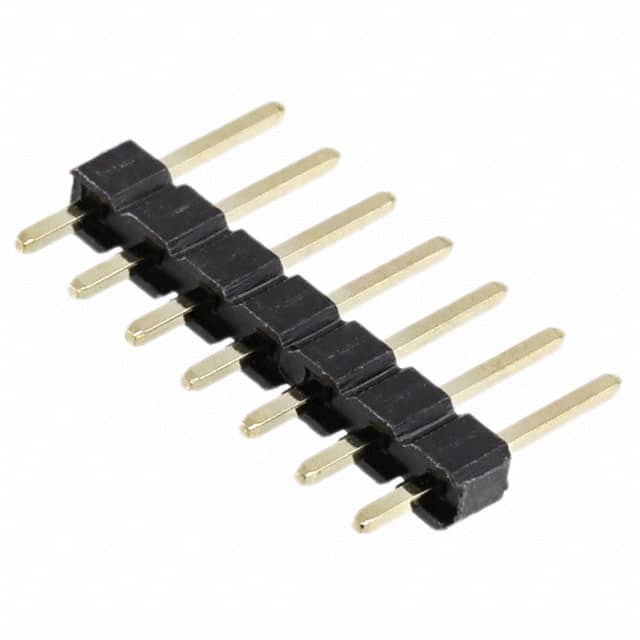

The Würth Elektronik 61300711121 is a 7-position single row pin header from the WR-PHD series. It features a 2.54mm pitch and through-hole mounting with solder termination. The unshrouded header has square male pins made of copper alloy with gold plating, ensuring reliable electrical contact. The insulator is black polyamide (PA6T) with a UL94 V-0 flammability rating.
Electrical ratings include a current rating of 3A and voltage rating of 250V AC. Contact resistance is 20 mΩ maximum, and insulation resistance is 1000 MΩ minimum. The operating temperature range is -40°C to 105°C. Withstanding voltage is 500V AC. The connector is rated for 25 mating cycles.
This header is suitable for board-to-board or cable-to-board applications. The overall contact length is 11.54mm, with a contact length of 6.00mm and insulation height of 2.54mm. The part is RoHS3 compliant, REACH unaffected, and has MSL 1 unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.34 | $0.34 |
| 25+ | $0.28 | $0.28 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.21 | $0.21 |
| 1,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 7 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The voltage rating is 250V AC.
It is a through-hole mounting connector with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts are made of copper alloy with gold plating.
