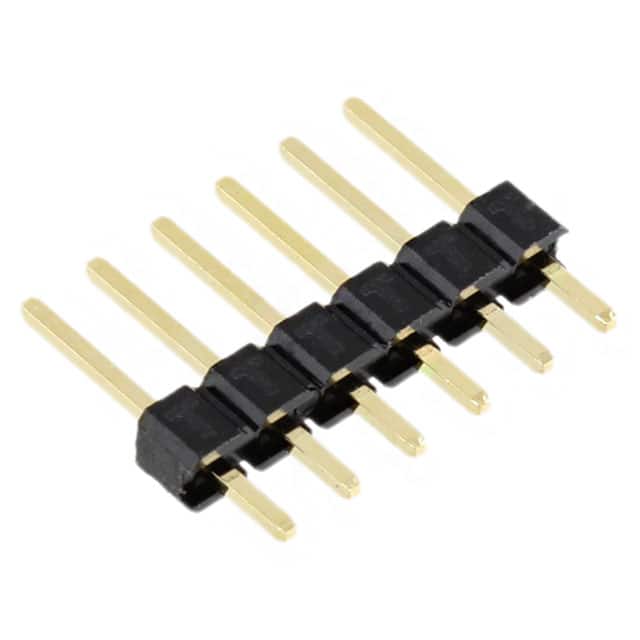

61300611121 CONN HEADER VERT 6POS 2.54MM. 6-position male pin header with 2.54mm pitch, through hole mount, gold plated contacts.
Mfr Part #:

61300611121

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
CONN HEADER VERT 6POS 2.54MM. 6-position male pin header with 2.54mm pitch, through hole mount, gold plated contacts.
✓ Total Stock: 889 pcs
$ Price Range: $0.18 - $0.35

61300611121 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Trace Tec ✓
Non-Authorised Inventory information
879 pcs
On Request
879 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61300611121 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
SVHC Present
Shrouding
Storage Temperature
Style
Termination
Voltage Rating
View Similar Products (0)

61300611121 Description

Short technical summary and product information.

The 61300611121 is a 6-position single row pin header from Würth Elektronik with a 2.54mm (0.100") pitch. It features a through hole mounting style with solder termination, unshrouded design, and push-pull fastening. The contacts are made of copper alloy with gold plating, housed in a black PA6T insulator rated UL94 V-0. Electrical ratings include 3A current, 250V AC working voltage, contact resistance 20 mOhm max, insulation resistance >1000 MOhm, and dielectric withstanding voltage 500V AC/min. The operating temperature range is -40°C to 105°C. It is RoHS compliant and lead-free, with quality class 3 per CECC 75 301-802 and standard certification E323964. Soldering is via JEDEC lead-free wave soldering process. Packaging is in bag.

61300611121 Quick Information

Product Type: Header
Series: WR-PHD
Canonical Name: CONN HEADER VERT 6POS 2.54MM
Subcategory: Headers, Male Pins

61300611121 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

61300611121 Estimated Pricing

Qty Low High
1+ $0.35 $0.35
10+ $0.30 $0.30
25+ $0.25 $0.25
50+ $0.21 $0.21
100+ $0.19 $0.19
1,000+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

61300611121 Features

  • 6-position single row header.
  • 2.54mm (0.100") pitch.
  • Through hole mounting with solder termination.
  • Gold plated copper alloy contacts.
  • Rated for 3A at 250V AC.

61300611121 Applications

  • Used in board-to-board connections.
  • Ideal for cable-to-board interconnects.
  • Suitable for general purpose signal routing.
  • Common in industrial control systems.

61300611121 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the header have?

6 positions.

What is the pitch of the 61300611121?

2.54mm (0.100").

What is the current rating?

3A.

What is the voltage rating?

250V AC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

Is the component RoHS compliant?

Yes, RoHS3 compliant and lead-free.
