| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

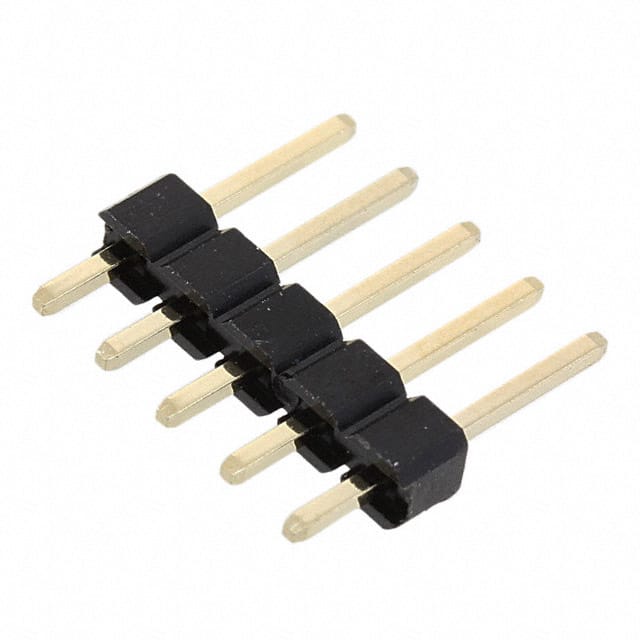

The Würth Elektronik 61300511121 is a WR-PHD series pin header designed for board-to-board or cable connections. This unshrouded header has 5 positions in a single row with a 2.54mm pitch, making it suitable for standard prototyping and interconnection applications.
The connector features through-hole mounting with solder termination and gold-plated copper alloy contacts for reliable electrical performance. It is rated for 3A current and 250V AC voltage, with a maximum contact resistance of 20 mΩ and minimum insulation resistance of 1000 MΩ. The insulator is made of black PA6T nylon with a UL94 V-0 flammability rating, and the operating temperature range is -40°C to 105°C.
With a durability of 25 mating cycles, this header is suitable for applications requiring moderate connection cycles. The overall contact length is 11.54mm, and the insulation height is 2.54mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.22 | $0.22 |
| 25+ | $0.19 | $0.19 |
| 50+ | $0.16 | $0.16 |
| 100+ | $0.14 | $0.14 |
| 1,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 61300511121 has 5 positions in a single row.
The pitch is 2.54mm (0.100").
The current rating is 3 A.
The voltage rating is 250 V (AC).
The mounting type is Through Hole.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant as verified in the datasheet.
