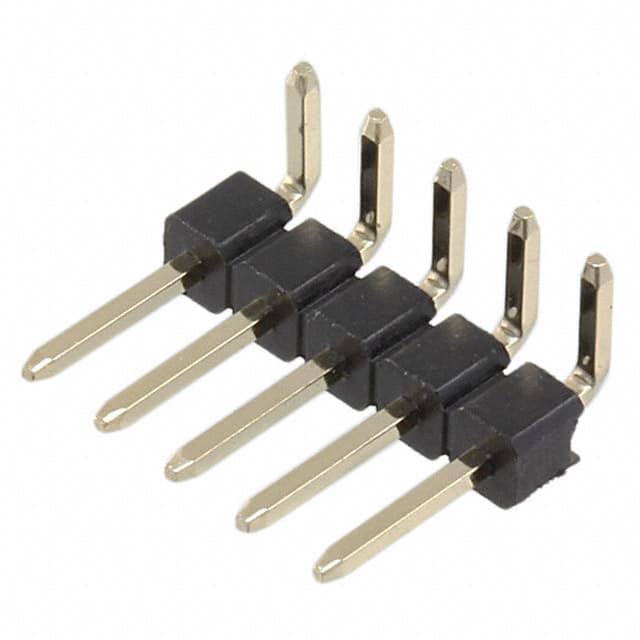

61300511021 Würth Elektronik 61300511021 is a 5-position, single row, 2.54mm pitch, right angle unshrouded pin header. It features through hole solder termination, gold plated copper alloy contacts, and a black PA6T insulator.
Mfr Part #:

61300511021

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 61300511021 is a 5-position, single row, 2.54mm pitch, right angle unshrouded pin header. It features through hole solder termination, gold plated copper alloy contacts, and a black PA6T insulator.
✓ Total Stock: 1,275 pcs
$ Price Range: $0.23 - $0.42

61300511021 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,275 pcs
On Request
1275 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61300511021 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

61300511021 Description

Short technical summary and product information.

The Würth Elektronik 61300511021 is a 5-position, single row, unshrouded pin header with a 2.54mm pitch. It features a right angle through hole mounting style, making it suitable for board-to-board or cable connections where a low-profile right angle interface is required.



The connector is rated for 3A current and 250V AC working voltage. Contacts are made of copper alloy with gold plating, ensuring reliable electrical performance. The insulator is black polyamide (PA6T) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.



Packaging is in bags. The part is RoHS compliant and lead free. It is designed for general electronics equipment and is not recommended for safety-critical applications without prior manufacturer approval.

61300511021 Quick Information

Product Type: Pin Header Connector
Series: WR-PHD
Canonical Name: Würth Elektronik 61300511021 - 2.54mm Right Angle Pin Header, 5 Positions, Single Row, Through Hole
Subcategory: Unshrouded Header

61300511021 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free and RoHS

61300511021 Estimated Pricing

Qty Low High
1+ $0.42 $0.42
10+ $0.35 $0.35
25+ $0.29 $0.29
50+ $0.25 $0.25
100+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

61300511021 Features

  • 5-position single row 2.54mm pitch header.
  • Right angle through hole mounting style.
  • Gold plated copper alloy contacts.
  • Rated for 3A current and 250V AC.
  • UL94 V-0 black PA6T insulator.

61300511021 Applications

  • Board-to-board connections in compact electronics.
  • Cable-to-board interfaces requiring right angle exit.
  • General purpose signal and low power interconnects.
  • Prototyping and test fixtures.

61300511021 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 61300511021 header?

The pitch is 2.54mm (0.100 inches).

How many positions does the 61300511021 have?

It has 5 positions in a single row, all loaded.

What is the current rating of the 61300511021?

The current rating is 3A.

What is the voltage rating of the 61300511021?

The voltage rating is 250V AC.

What is the mounting type of the 61300511021?

Through hole, right angle.

What is the operating temperature range?

-40°C to 105°C (datasheet) or -40°C to 125°C (existing data).

Is the 61300511021 RoHS compliant?

Yes, it is RoHS3 compliant and lead free.
