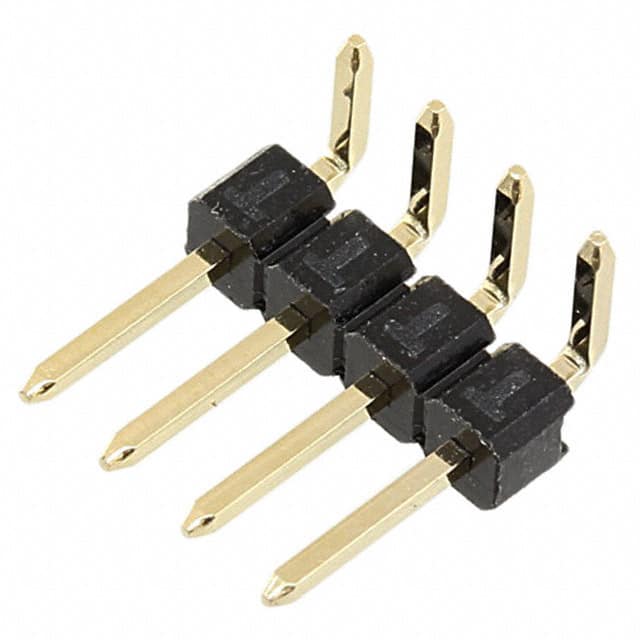

61300411021 Würth Elektronik 61300411021 is a 4-position, single row, right angle, through hole pin header with 2.54mm pitch, rated for 3A and 250V AC.
Mfr Part #:

61300411021

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 61300411021 is a 4-position, single row, right angle, through hole pin header with 2.54mm pitch, rated for 3A and 250V AC.
✓ Total Stock: 721 pcs
$ Price Range: $0.20 - $0.38

61300411021 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
721 pcs
On Request
721 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61300411021 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

61300411021 Description

Short technical summary and product information.

The Würth Elektronik 61300411021 is a single row, right angle, through hole pin header from the WR-PHD series. It features 4 male pin contacts arranged at a 2.54mm (0.100") pitch and is designed for board-to-board or cable interconnection.



This connector is rated for a current of 3A and a working voltage of 250V AC. It operates over a temperature range of -40°C to +105°C and is built with a black PA6T insulator rated UL94 V-0 for flammability. The contacts are copper alloy with gold plating, ensuring reliable electrical performance with a contact resistance of 20 mΩ maximum. The insulation resistance exceeds 1000 MΩ.



The unshrouded push-pull fastening type and right angle orientation make it suitable for compact PCB layouts where low-profile side-entry connections are needed. Termination is via solder to through-hole pads.

61300411021 Quick Information

Product Type: Pin Header Connector
Series: WR-PHD
Canonical Name: Würth Elektronik 61300411021 WR-PHD Pin Header – 4 Position, Single Row, Right Angle, 2.54mm Pitch, Through Hole
Subcategory: Unshrouded Right Angle Header

61300411021 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free and RoHS

61300411021 Estimated Pricing

Qty Low High
1+ $0.38 $0.38
10+ $0.32 $0.32
25+ $0.27 $0.27
50+ $0.22 $0.22
100+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

61300411021 Features

  • 4-position single row right angle pin header.
  • 2.54mm pitch for standard interconnects.
  • Rated for 3A continuous current and 250V AC.
  • Gold plated copper alloy contacts for low resistance.
  • UL94 V-0 rated PA6T insulator material.

61300411021 Applications

  • Board-to-board stacking in compact electronic assemblies.
  • Cable-to-board connections in power or signal routing.
  • General purpose right-angle pin header for prototyping.
  • Industrial control and measurement equipment interfaces.

61300411021 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the pitch of the 61300411021 header?

The pitch is 2.54mm (0.100").

How many positions does this header have?

It has 4 positions in a single row.

What are the current and voltage ratings for the 61300411021?

The current rating is 3A and the voltage rating is 250V AC.

What is the mounting type of this connector?

It is a through hole, right angle mounting type for solder termination.
