| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

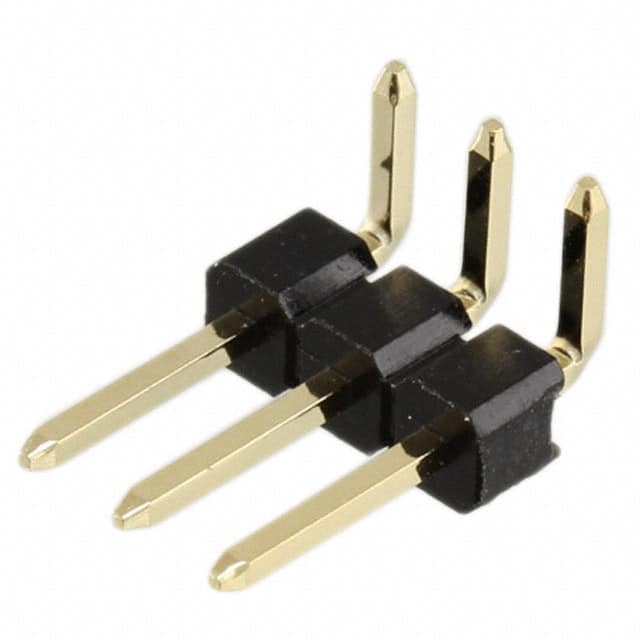

The Würth Elektronik 61300311021 is a 3-position, single row, right angle pin header designed for board-to-board or cable applications. It uses a 2.54mm pitch and features unshrouded male square pins with gold plating over a copper alloy contact material.
The insulator is molded from black polyamide PA6T with a UL94 V-0 flammability rating. The connector is rated for 3A current and 250V AC working voltage, with a maximum contact resistance of 20 mOhm and insulator resistance greater than 1000 MOhm. It withstands 500V AC dielectric strength.
This header is through-hole mounted with a right angle orientation and solder termination. It is RoHS compliant and lead-free, with an operating temperature range of -40°C to 105°C. Packaging is in bags.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.32 | $0.32 |
| 25+ | $0.27 | $0.27 |
| 50+ | $0.22 | $0.22 |
| 100+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 3 positions in a single row.
The current rating is 3A.
The voltage rating is 250V AC.
It is through-hole mounted with a right angle orientation.
Yes, it is RoHS3 compliant and lead-free.
The operating temperature range is -40°C to 105°C.
