| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Country of Origin | |
| Diameter | |
| Failure Rate | |
| Insulation | |
| Insulation Material | |
| Product Type |

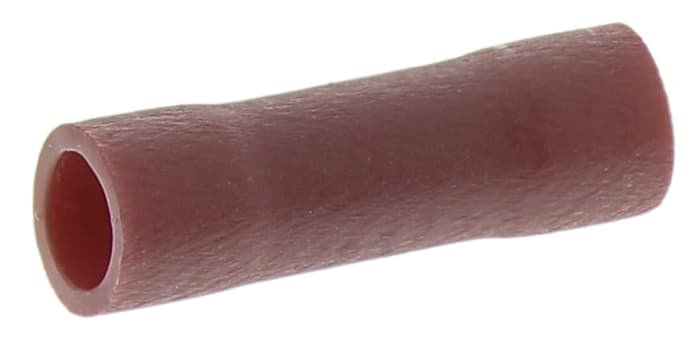

This RS PRO PVT Parallel Splice Connector, part number 613-9772, is an insulated butt splice terminal designed for creating solderless cable joints. It is constructed from high-grade copper with a tin plating and features a red vinyl insulation for easy wire size identification.
The connector is suitable for wire sizes ranging from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²). It has an overall length of 16.5mm and a diameter of 4mm. The parallel splice type ensures a secure and reliable connection when crimped with a suitable tool, providing good tensile strength and maximum contact with the wire.
Applications for this splice connector include industrial control systems, the automotive and transportation sector, machine building, electrical and electronic equipment, and commercial and domestic appliances. The color-coded insulation helps in quick identification of the correct terminal for the wire gauge.
Professionally designed using high-quality materials, these splice terminals are essential for repairing, changing, or lengthening electrical circuits, offering a safe and efficient method for current flow between wires.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This splice connector supports wire sizes from 22 AWG to 16 AWG, which corresponds to 0.5 mm² to 1.5 mm².
The contact is made of copper and is plated with tin.
The insulation material is vinyl and the color is red.
The splice connector has an overall length of 16.5mm and a diameter of 4mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
