| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

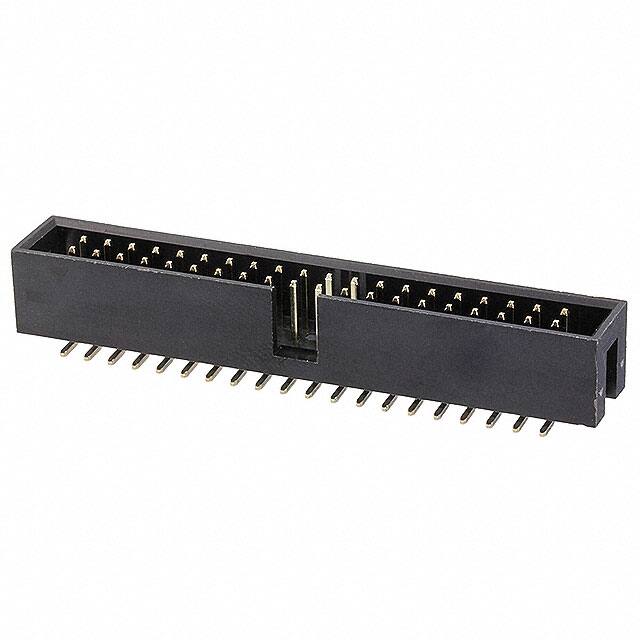

The Würth Elektronik 61234020621 is a 40-position, 2-row shrouded male pin header from the WR-BHD series, designed for surface mount applications with a 2.54mm pitch and row spacing. It features a 4-wall shrouded housing in black PA9T with a push-pull fastening type, a keying slot, and a pick-and-place feature for automated assembly.
Electrical characteristics include a 3 A current rating, 250 VAC working voltage, 20 mOhm max contact resistance, >5000 MOhm insulation resistance, and a 1000 VAC/min dielectric withstanding voltage. The operating temperature range is -40°C to 105°C and the insulation material meets UL94 V-0 flammability rating.
This connector is supplied in Tape & Reel packaging with 250 pieces per reel and is qualified for JEDEC lead-free reflow soldering. It is RoHS and lead-free compliant, with quality class 3 per CECC 75 301-802.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.98 | $7.98 |
| 10+ | $7.65 | $7.65 |
| 50+ | $6.73 | $6.73 |
| 100+ | $5.80 | $5.80 |
| 300+ | $4.63 | $4.63 |
| 600+ | $4.13 | $4.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54 mm (0.100 inches).
It has 40 positions in a 2-row configuration.
The current rating is 3 A maximum.
The working voltage is 250 VAC.
It is a surface mount device (SMD).
The operating temperature range is -40°C to 105°C.
