| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
442 pcs
|
442 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

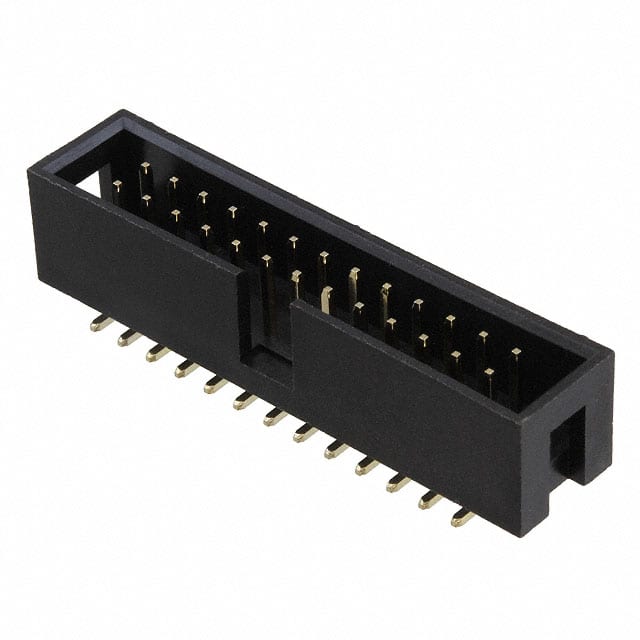

The Würth Elektronik 61232620621 is a 26-position, 2-row, 2.54mm (0.100") pitch surface mount male pin header from the WR-BHD series. It features a full 4-wall shrouded housing in black PA 9T insulator material with a UL94 V-0 flammability rating.
The male pins are made of copper alloy with gold plating, providing reliable contact integrity rated for 3A maximum current and 250VAC working voltage. Contact resistance is held to 20 mOhm maximum with insulator resistance greater than 5000 MOhm.
Designed for board-to-cable/wire applications, this connector includes a keying slot and pick-and-place feature for automated assembly. It is packaged in tape and reel with cap, with a standard reel quantity of 250 pieces. The JEDEC lead-free reflow soldering process is supported.
Certified to quality class 3 per CECC 75 301-802, with UL standard E323964, this header is suitable for a wide range of industrial and commercial electronic assemblies requiring a robust, polarized, shrouded interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.89 | $6.89 |
| 10+ | $6.62 | $6.62 |
| 50+ | $5.82 | $5.82 |
| 100+ | $5.02 | $5.02 |
| 300+ | $4.00 | $4.00 |
| 600+ | $3.57 | $3.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 26 positions arranged in 2 rows.
The maximum current rating is 3A.
The maximum working voltage is 250 VAC.
It is a surface mount (SMT) header with solder termination.
The operating temperature range is from -40°C to 105°C.
Yes, it is RoHS3 compliant and lead free.
