| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

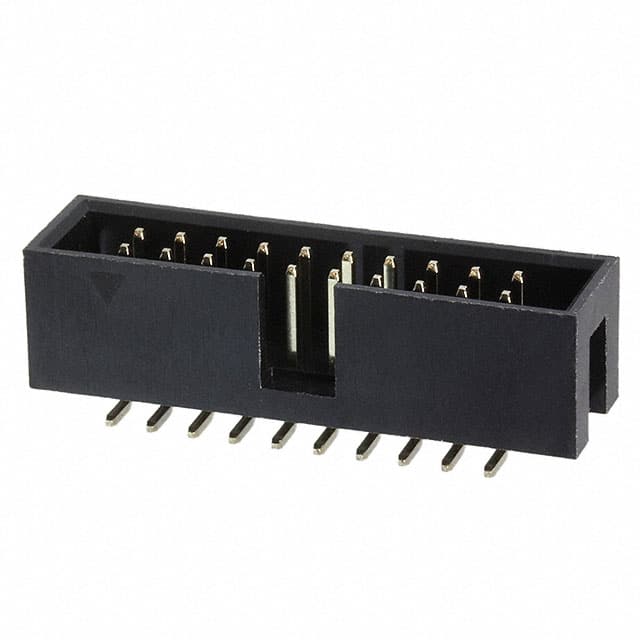

The Würth Elektronik 61232020621 is a 20-position, 2-row male pin header with a 2.54mm pitch, designed for surface mount soldering. Part of the WR-BHD series, this shrouded 4-wall header features square gold-plated copper alloy contacts and a black polyamide (PA6T) insulator rated UL94 V-0.
Rated for 3A maximum current and 250V working voltage, the connector offers an insulator resistance >5000 MΩ and a dielectric withstanding voltage of 1000 VAC/min. The operating temperature range is -40°C to 105°C, making it suitable for general electronics.
This header is intended for board-to-cable/wire connections and includes a keying slot for alignment and a pick-and-place feature for automated assembly. It comes packaged in tape and reel with 250 pieces per reel, compatible with JEDEC lead-free reflow soldering processes.
The product is RoHS and lead-free compliant, with UL standard certified E323964.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
| 10+ | $6.12 | $6.12 |
| 50+ | $5.38 | $5.38 |
| 100+ | $4.64 | $4.64 |
| 300+ | $3.71 | $3.71 |
| 600+ | $3.31 | $3.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100"). The row spacing is also 2.54mm.
The maximum current rating is 3 A.
The nominal working voltage rating is 250 V.
This header is surface mount (SMT) with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts have a gold finish over copper alloy.
