| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

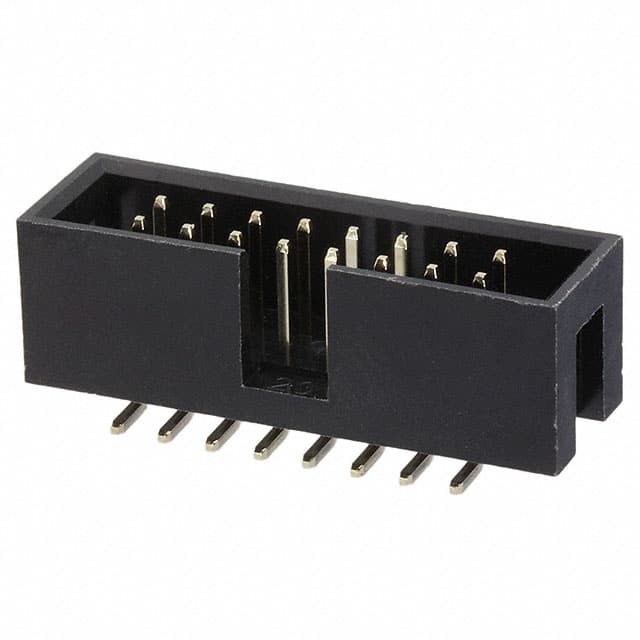

The Würth Elektronik 61231620621 is a 16-position, 2-row, 2.54mm pitch shrouded male pin header from the WR-BHD series. It features a surface mount termination with a push-pull fastening type and a 4-wall shrouded design that includes a keying slot for polarization and a pick-and-place feature for automated assembly.
The connector is rated for 3A current and 250V working voltage, with a maximum contact resistance of 20 mOhm and insulator resistance greater than 5000 MOhm. It is constructed with a black PA 9T insulator, copper alloy contacts with gold plating, and meets UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.
Packaged in tape and reel with cap, 250 pieces per reel, this connector is designed for board-to-cable/wire applications and is RoHS and lead-free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.60 | $5.60 |
| 10+ | $5.38 | $5.38 |
| 50+ | $4.73 | $4.73 |
| 100+ | $4.07 | $4.07 |
| 300+ | $3.25 | $3.25 |
| 600+ | $2.91 | $2.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 16 positions arranged in 2 rows.
The current rating is 3 A maximum.
The working voltage is 250 VAC.
It is a surface mount (SMT) connector with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS compliant and lead-free.
