| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulator Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Quality Class | |
| Row Spacing | |
| Shrouding | |
| Solder Process | |
| Standard Certified | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Voltage Rating |

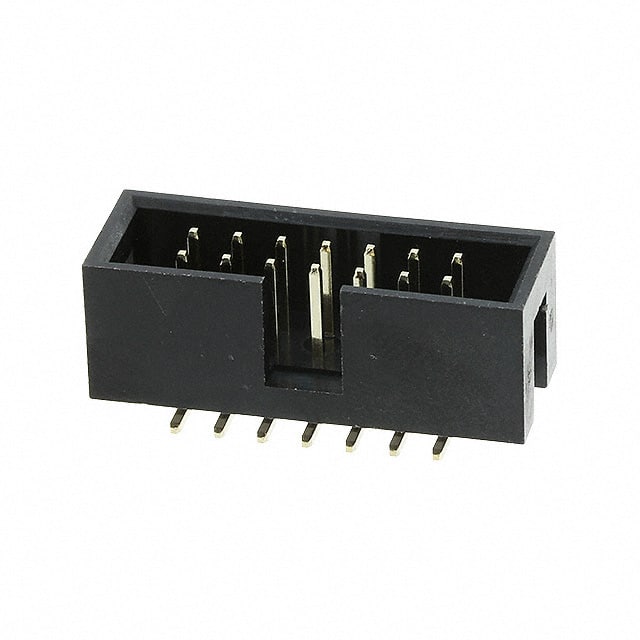

The Würth Elektronik 61231420621 is a WR-BHD series 2.54mm pitch male SMT box header designed for board-to-cable/wire applications. It features a shrouded 4-wall housing with push-pull fastening, keying slot, and pick-and-place capability for automated assembly. The insulator is molded from PA9T (black) with UL94 V-0 flammability rating. Contacts are square copper alloy pins with gold plating, rated for 3A maximum current and 250VAC working voltage. The connector offers a contact resistance of 20 mΩ max and insulator resistance greater than 5000 MΩ, with a dielectric withstanding voltage of 1000 VAC/min. Operating temperature range is -40°C to 105°C. The part is packaged in tape and reel with cap, 250 pieces per reel, and is compatible with JEDEC lead-free reflow soldering. UL certified (E323964) and quality class 3 per CECC 75 301-802.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.60 | $5.60 |
| 10+ | $5.38 | $5.38 |
| 50+ | $4.73 | $4.73 |
| 100+ | $4.07 | $4.07 |
| 300+ | $3.25 | $3.25 |
| 600+ | $2.91 | $2.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in 2 rows.
2.54mm pitch with 2.54mm row spacing.
3A maximum.
250 VAC working voltage.
Surface mount with solder termination.
-40°C to 105°C.
Yes, RoHS compliant and lead-free.
