| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,540 pcs
|
1540 pcs | On Request | 1 | On Request | On Request | 13+ & 15+ | On Request | On Request | |
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

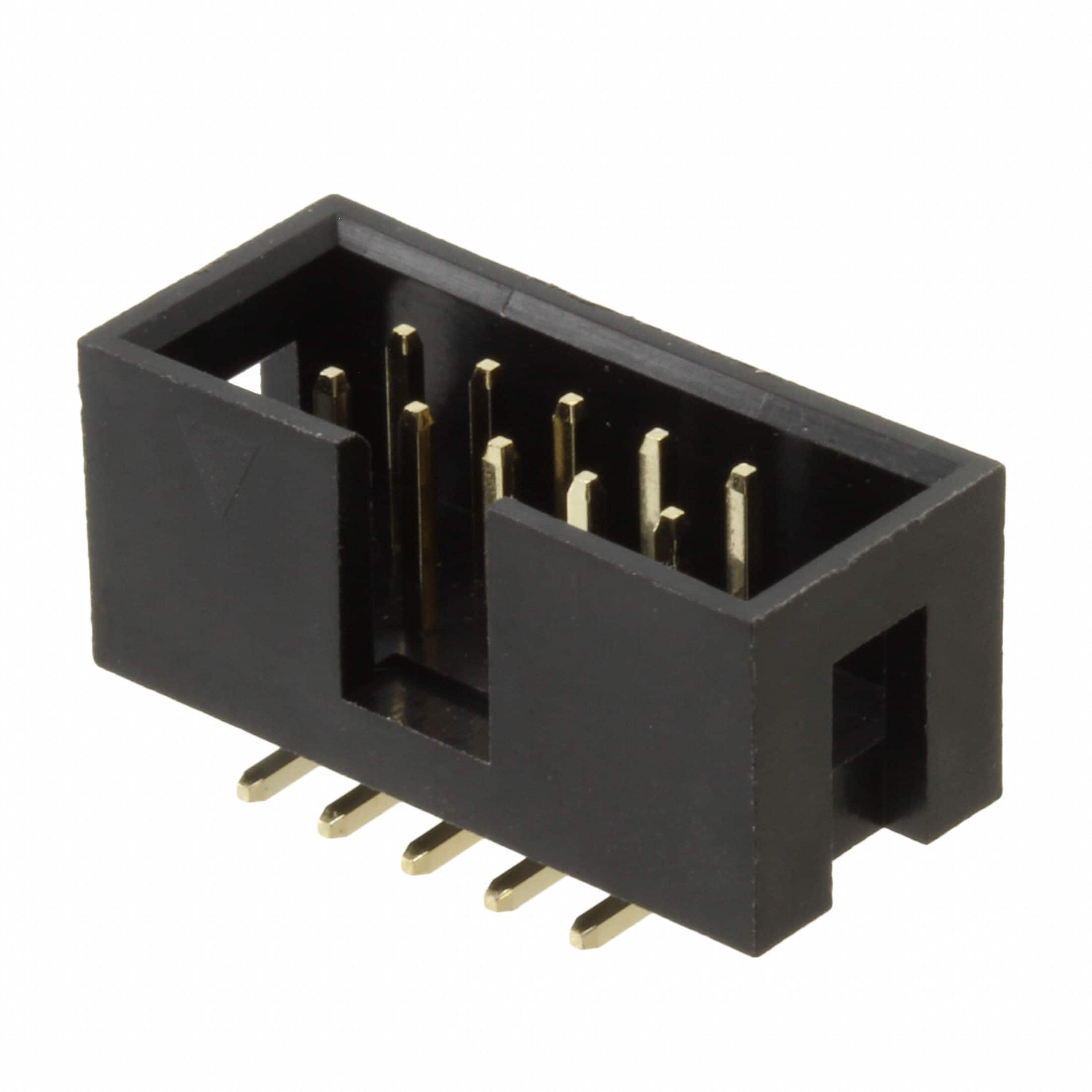

The Würth Elektronik 61231020621 is a WR-BHD series 2.54mm pitch male box header designed for board-to-cable/wire applications. This surface mount connector features a shrouded 4-wall housing in black polyamide (PA6T) with a UL94 V-0 flammability rating.
With 10 positions arranged in 2 rows, the header offers a current rating of 3A and a working voltage of 250V. The square male pins are made of copper alloy with gold plating, ensuring reliable electrical contact. The insulator provides an insulation height of 9.20mm and the contact length is 5.00mm.
Additional features include a keying slot for polarization and a pick-and-place cap for automated assembly. The connector is packaged in tape and reel with a cap, suitable for high-volume SMT production. It complies with RoHS and is lead-free, with an MSL of 1 (unlimited floor life).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.17 | $5.17 |
| 10+ | $4.96 | $4.96 |
| 50+ | $4.36 | $4.36 |
| 100+ | $3.76 | $3.76 |
| 300+ | $3.00 | $3.00 |
| 600+ | $2.68 | $2.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
The current rating is 3A.
The voltage rating is 250V.
It is a surface mount (SMD) connector with solder termination.
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS compliant and lead-free.
