61230820621

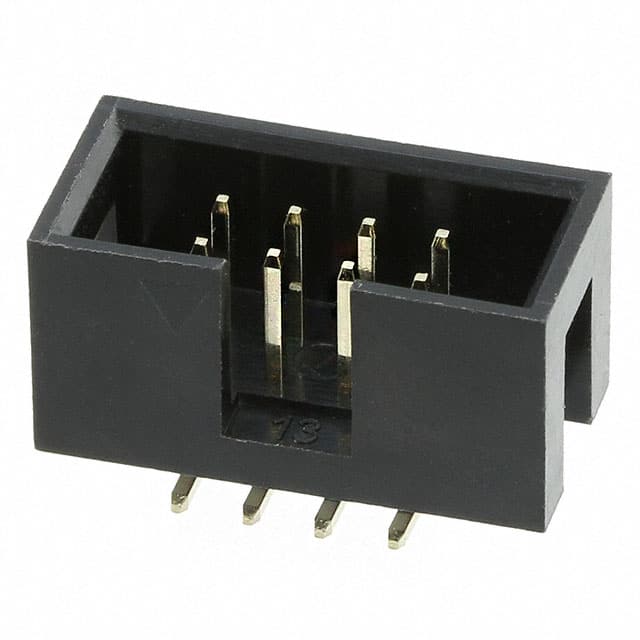

The Würth Elektronik 61230820621 is a WR-BHD series 2.54mm pitch male pin header designed for board-to-cable/wire applications. It features a shrouded 4-wall housing in black polyamide (PA9T) with a UL94 V-0 flammability rating, ensuring robust mechanical protection and reliable mating. The connector has 8 positions arranged in 2 rows with a row spacing of 2.54mm, and the contacts are square male pins made of copper alloy with a gold finish. The mating contact length is 5.90mm, and the insulation height is 9.10mm. This header is surface mount (SMT) with solder termination and a push-pull fastening type. It includes a keying slot and a pick-and-place feature for automated assembly. Electrically, it is rated for 3A current and 250VAC voltage, with a contact resistance of 20 mOhm max and insulation resistance of 1000 MOhm. The operating temperature range is -40°C to +125°C, and it is rated for 30 mating cycles. The part is RoHS3 and REACH compliant.
