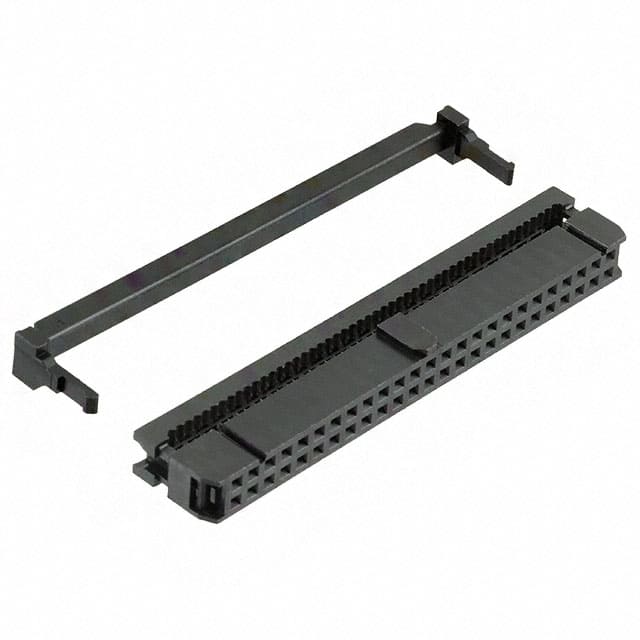

The Würth Elektronik 61205023021 is a WR-BHD series female IDC (Insulation Displacement Connector) receptacle designed for reliable termination of 28 AWG ribbon cable. It provides 50 positions in a 2-row configuration with a standard 2.54 mm pitch and row spacing.
This connector features female socket contacts with selective gold plating over a copper alloy base, ensuring dependable electrical performance. The insulator is molded from black PBT material rated UL94 V-0. The part includes feed-through design, polarizing key, and an integrated strain relief for secure cable management.
Electrical ratings include a maximum current of 1 A per contact, working voltage of 250 V AC, and a withstanding voltage of 500 V AC for 1 minute. Contact resistance is a maximum of 20 mΩ, and insulation resistance is a minimum of 1000 MΩ. The operating temperature range is -40 °C to +105 °C.
The 61205023021 is a free hanging, in-line connector. Overall length is 68.18 mm with a pin-to-pin (middle) dimension of 60.96 mm. It is rated for 30 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.72 | $1.72 |
| 10+ | $1.65 | $1.65 |
| 24+ | $1.45 | $1.45 |
| 48+ | $1.25 | $1.25 |
| 96+ | $1.05 | $1.05 |
| 192+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions in a 2-row configuration.
2.54 mm (0.100 inches).
1 A maximum per contact.
Working voltage is 250 V AC, withstanding voltage is 500 V AC for 1 minute.
Free hanging (in-line) with IDC termination.
28 AWG ribbon cable.
Yes, RoHS compliant per 2011/65/EU and 2015/863.
