| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Contact Type (Stamped) | |
| Durability | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pin to Pin (Middle) | |
| Pitch | |
| Rated Current | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| UL Approval | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage | |
| Working Voltage |

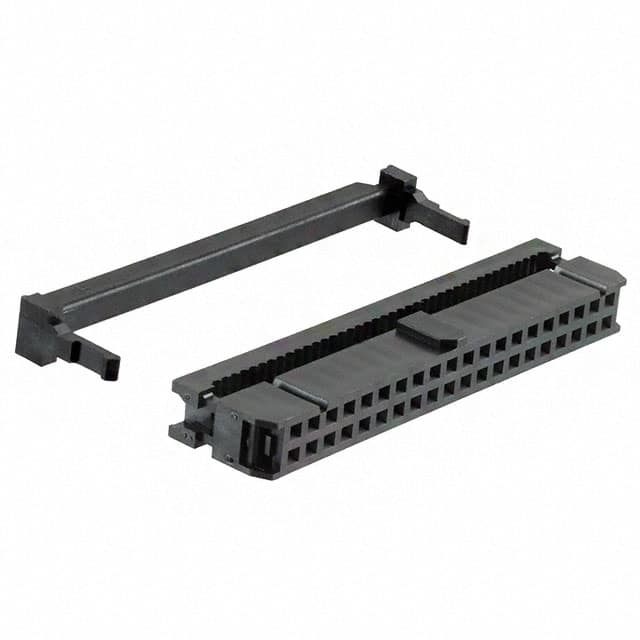

This Würth Elektronik WR-BHD IDC receptacle (part number 61204023021) is a 40-position, 2-row female socket connector designed for mass termination to 28 AWG ribbon cable using IDC (Insulation Displacement Contact) technology. It features a 2.54mm pitch and 2.54mm row spacing, making it compatible with standard 0.100" header pin strips.
The connector is free-hanging (in-line) mounting type, with a black PBT insulator rated UL94 V-0. Contacts are copper alloy with selective gold plating, ensuring reliable signal integrity. The receptacle includes feed-through design, polarizing key, and integrated strain relief for robust cable management.
Electrical ratings include 1 A maximum current per circuit, 250 V AC working voltage, and a withstanding voltage of 500 V AC for 1 minute. Contact resistance is 20 mΩ maximum, and insulation resistance is 1000 MΩ minimum. The operating temperature range is -40°C to +105°C.
The WR-BHD series is suitable for internal wiring applications in general electronic equipment where reliable, mass-terminated ribbon cable connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.38 | $1.38 |
| 30+ | $1.21 | $1.21 |
| 60+ | $1.04 | $1.04 |
| 120+ | $0.87 | $0.87 |
| 240+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions arranged in 2 rows.
Pitch is 2.54mm (0.100") with 2.54mm row spacing.
Maximum rated current is 1 A per contact.
Working voltage is 250 V AC; withstanding voltage is 500 V AC for 1 minute.
Free hanging (in-line) mounting.
